Product Name
|

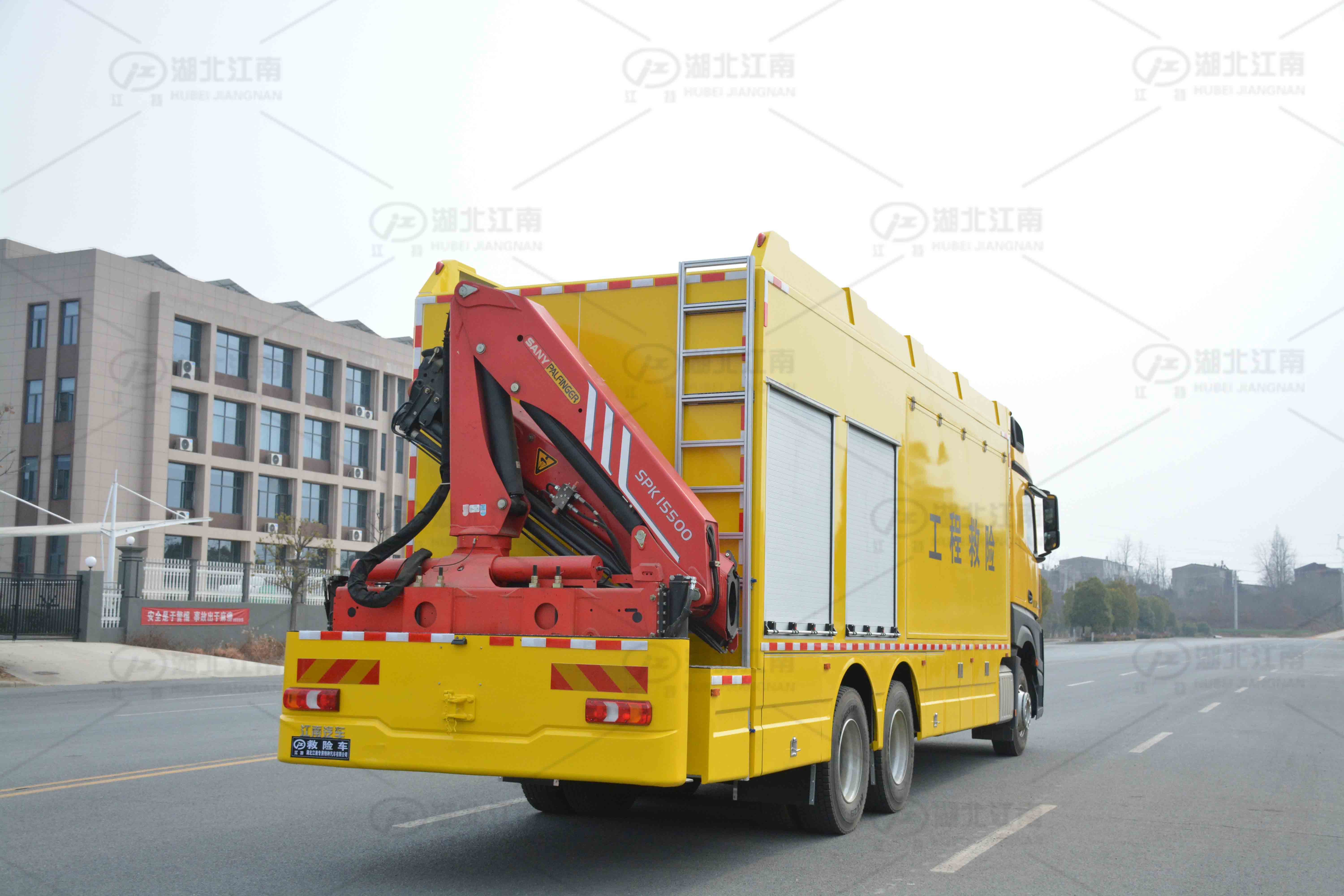

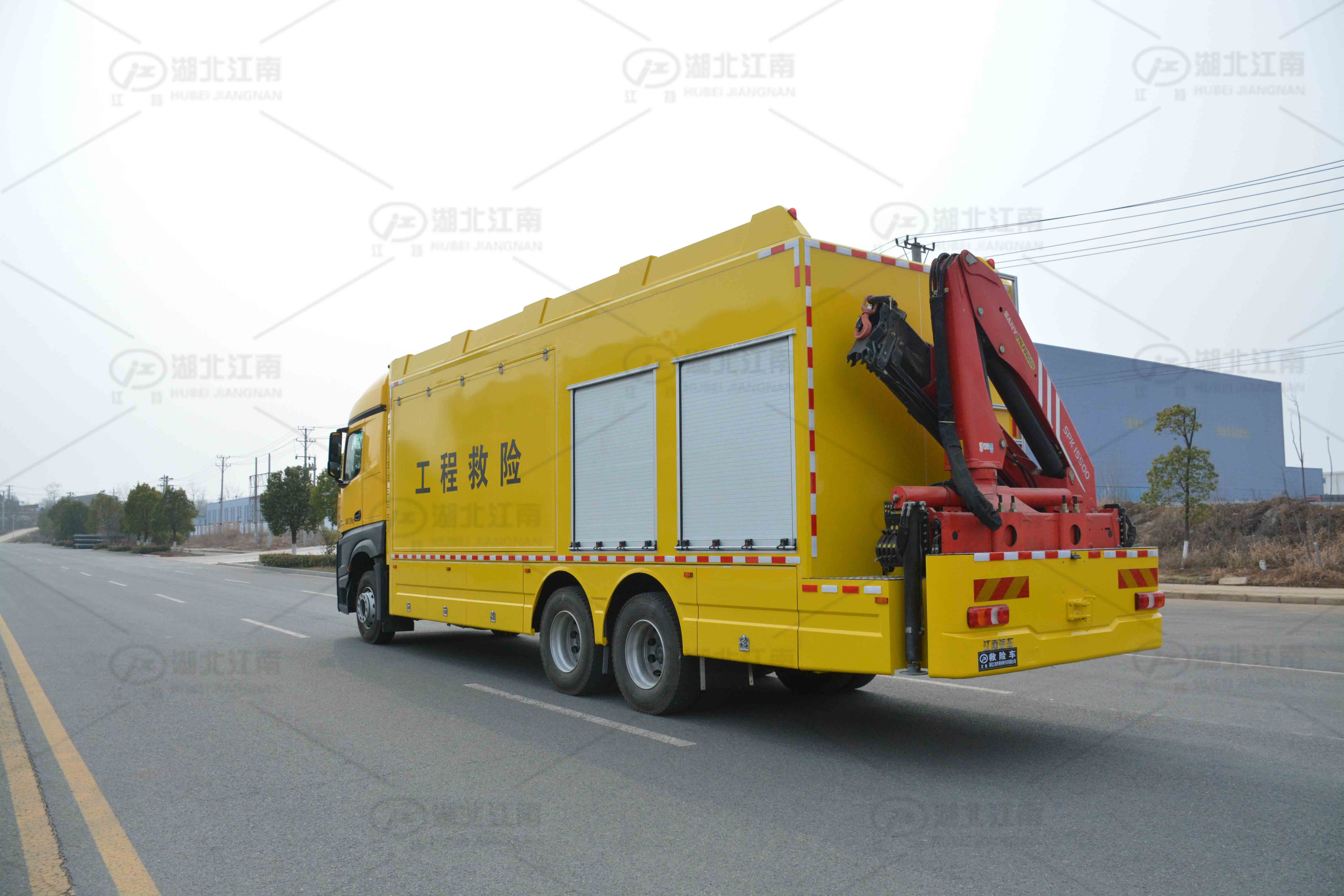

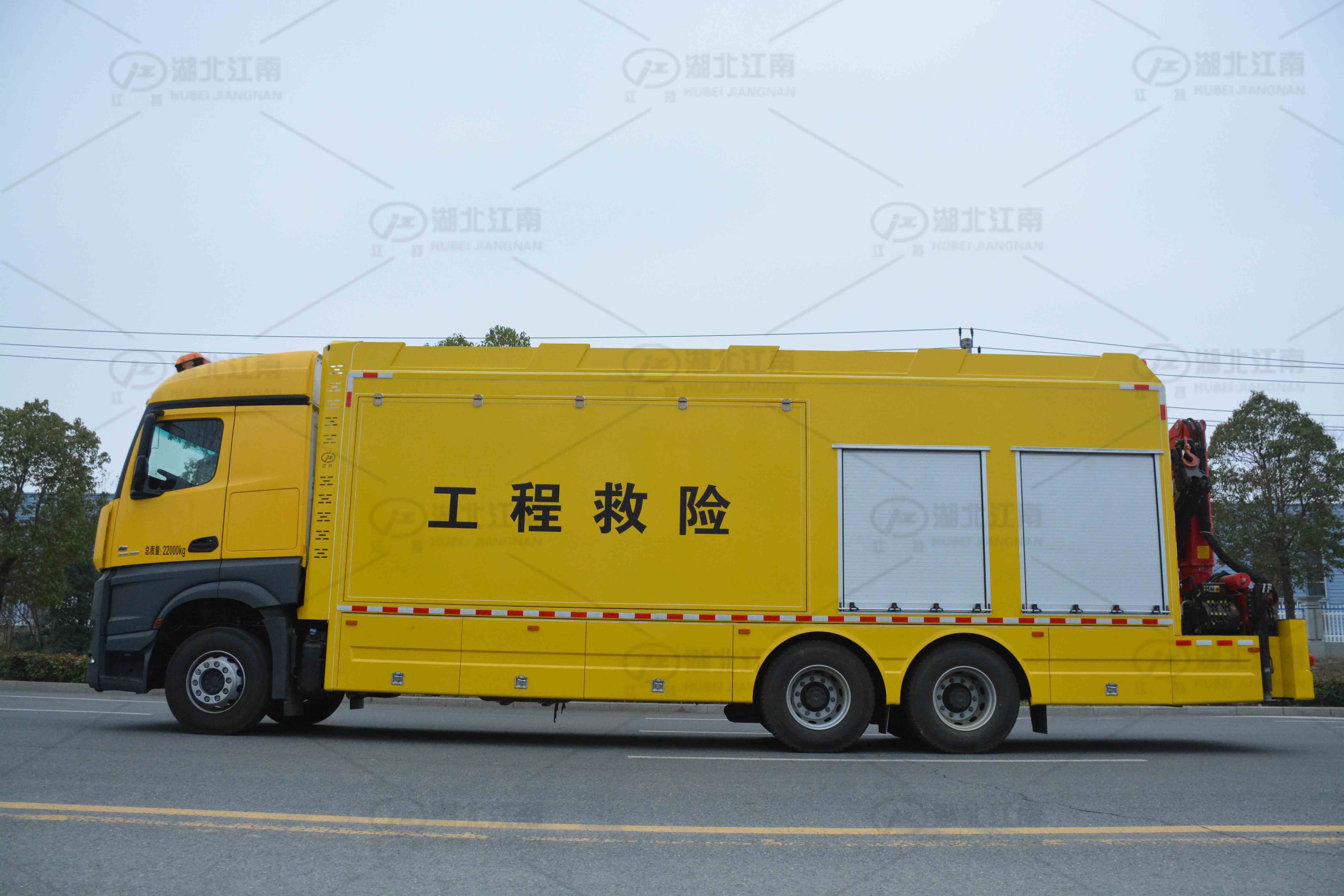

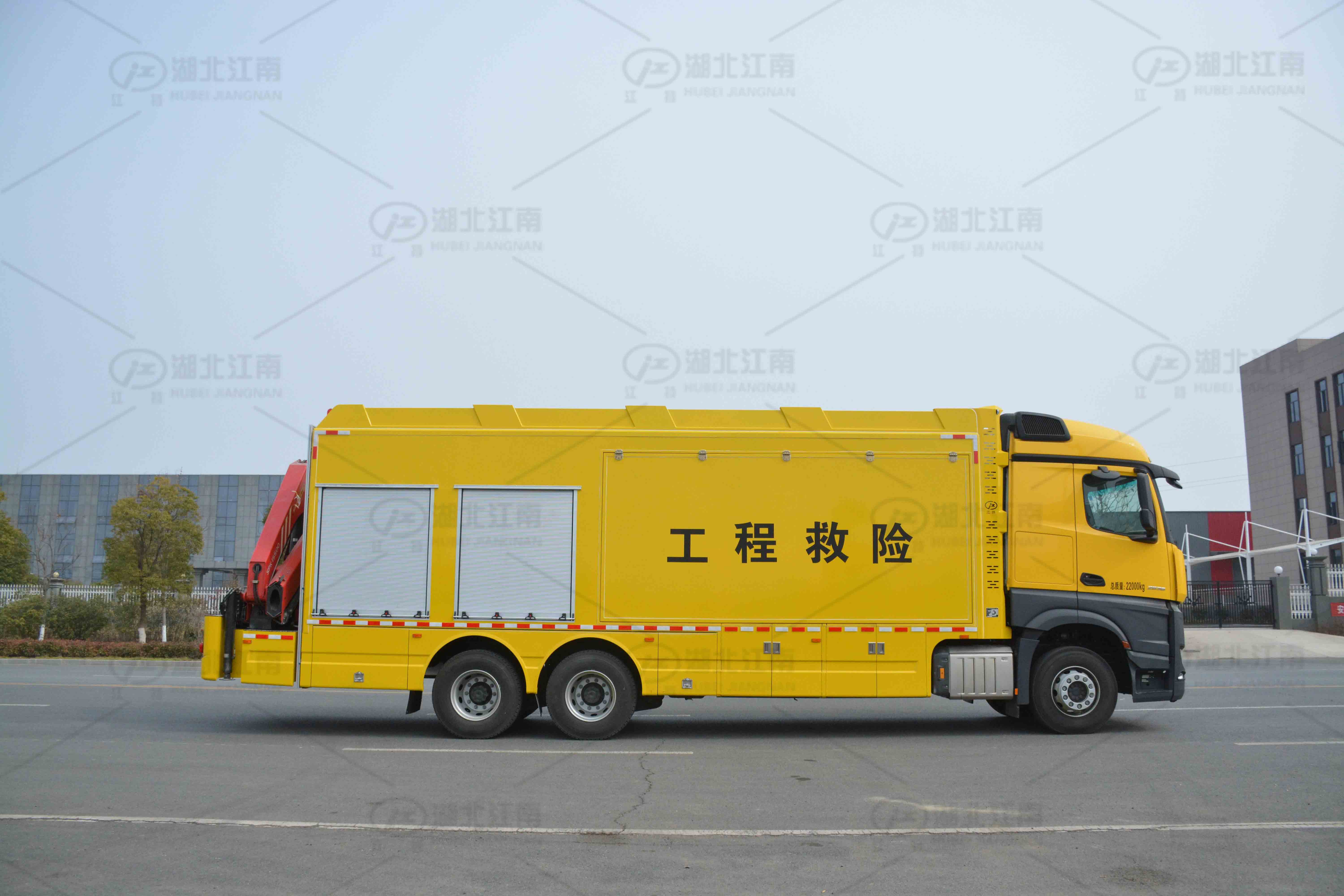

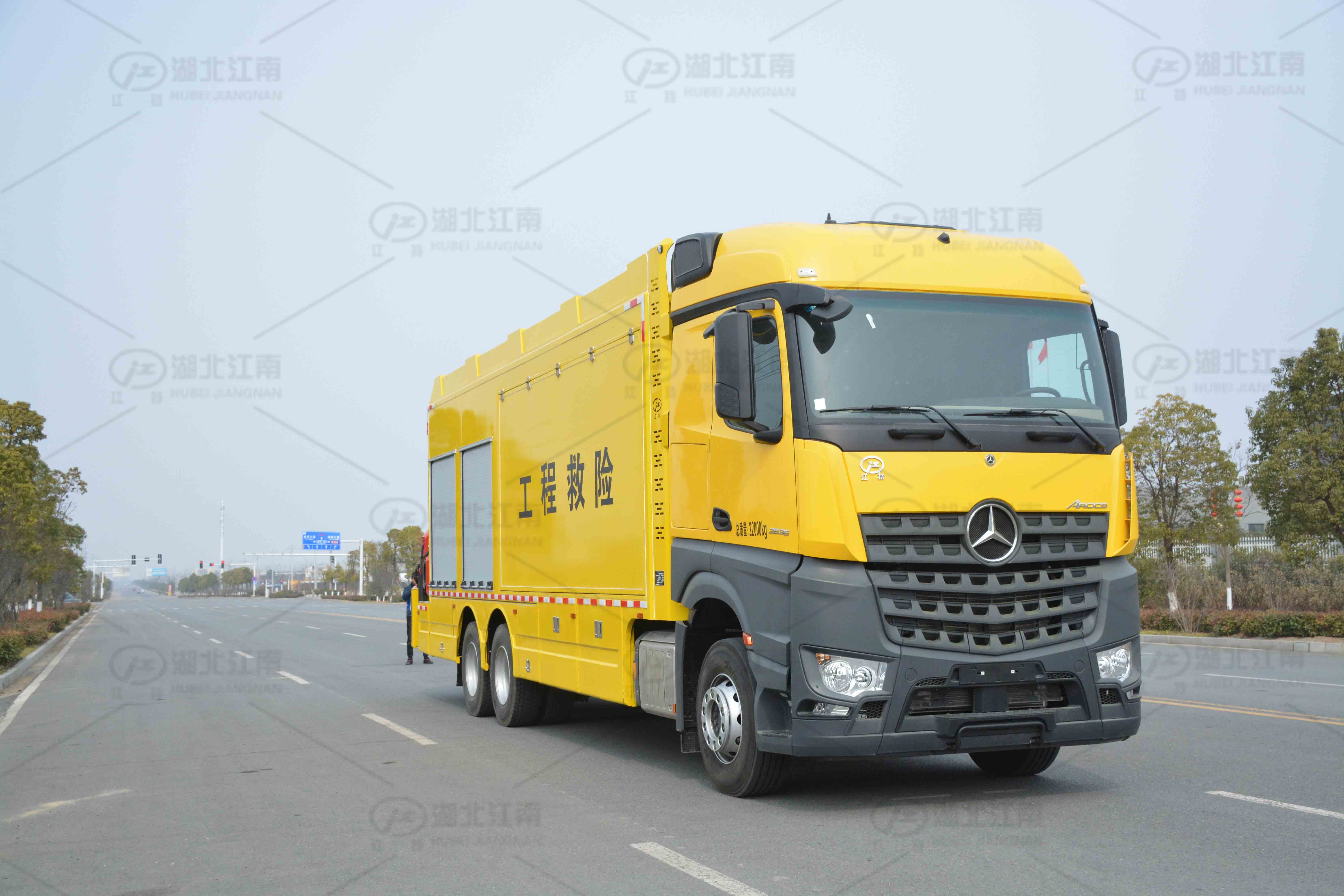

Model JDF5220XXHA6 Rescue Vehicle
|
|
Overall Dimensions (mm)
|
12090×2540×3850
|
|
Gross Vehicle Weight (kg)
|
22000
|
|
Rated Payload (kg)
|
21870
|
|
Kerb Mass (kg)
|
21870
|
|
Front Passenger Seating
|
2 persons
|
|
Chassis Model
|
Arocs 2636E6 6X4 Type‑2 (Mercedes‑Benz)
|
|
Number of Axles
|
3‑axle (6×4)
|
|
Wheelbase (mm)
|
5700+1350
|
|
Tire Specification
|
295/80R22.5
|
|
Fuel Type
|
Diesel
|
|
Emission Standard
|
GB17691‑2018 National‑VI
|
|
Engine
|
OM470LA.6‑59, 266kW (362 HP)
|
|
Main Special Equipment
|
Truck‑mounted crane, generator set, air compressor, pneumatic pick; WABCO ABS system, integrated Q235 protective structure; optional without warning lamp group, for various large‑scale rescue operations
|
