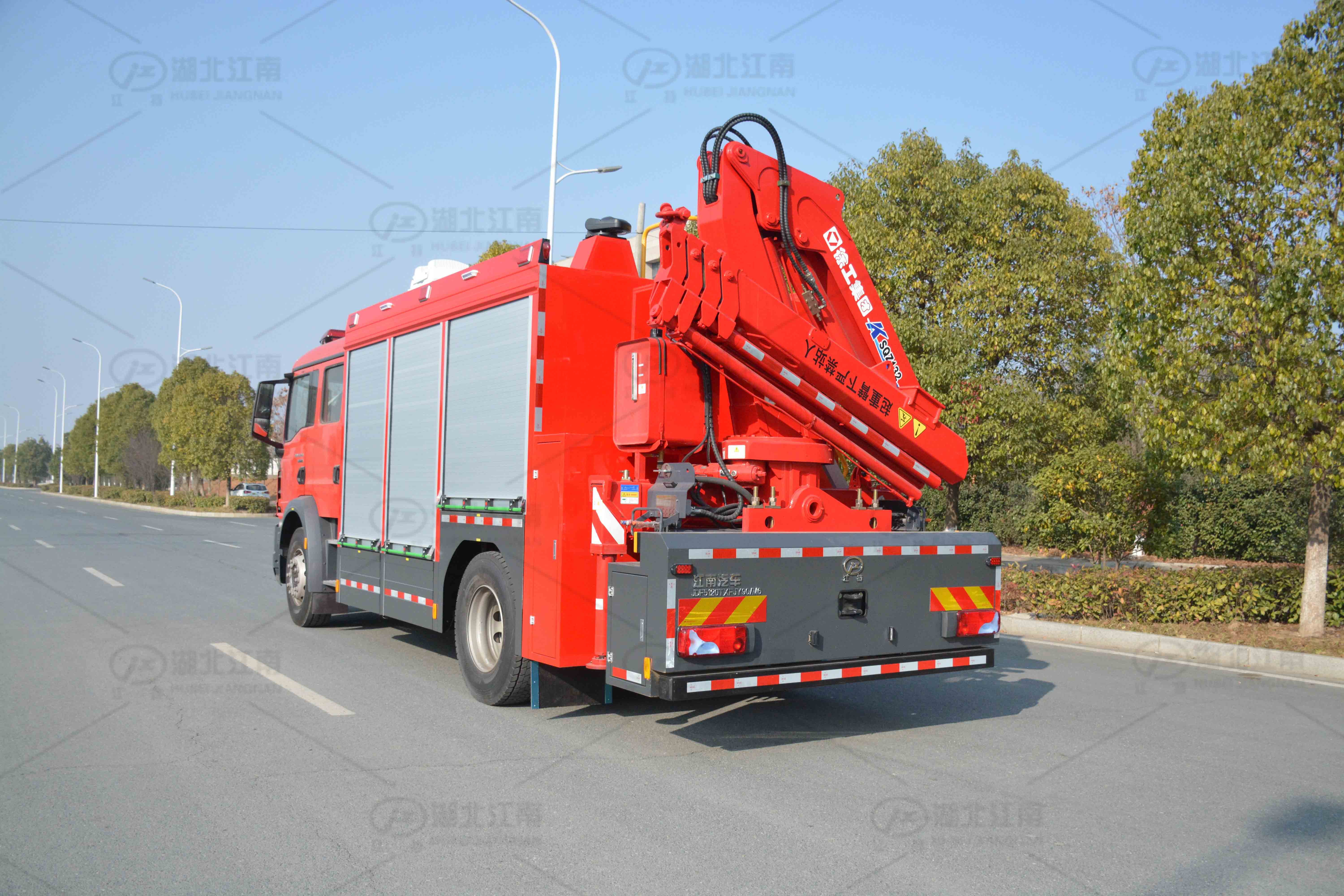

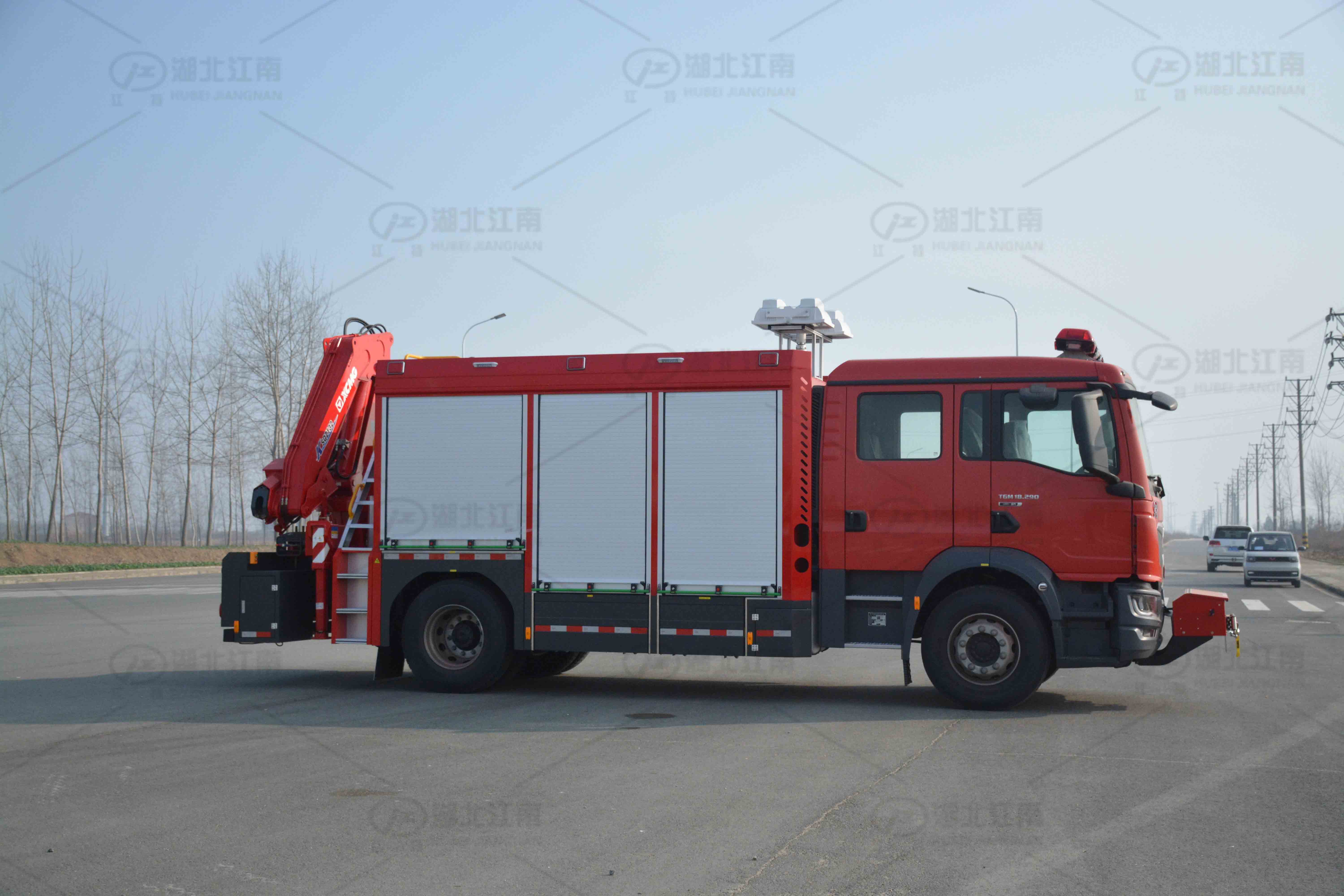

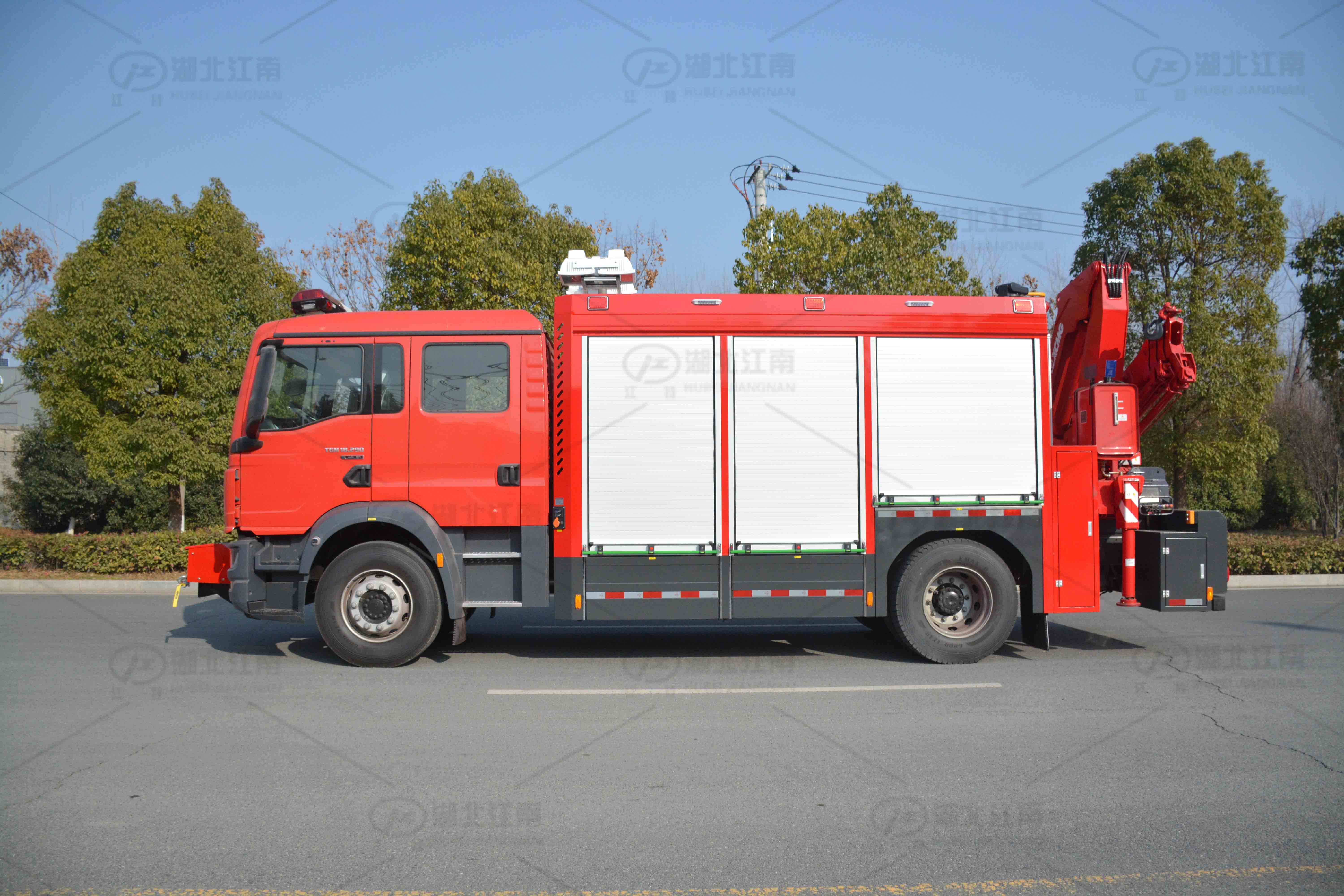

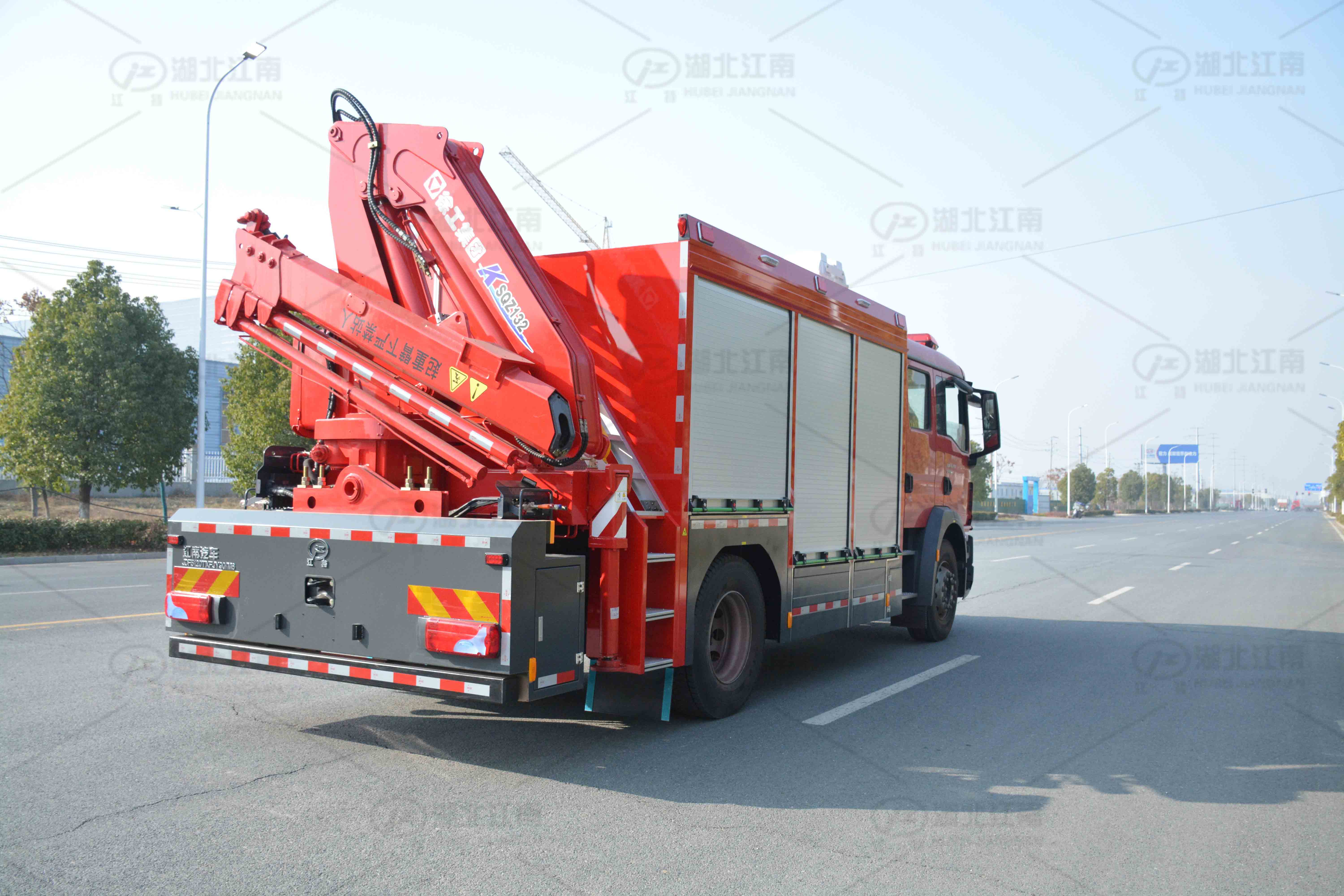

MAN Rescue Vehicle

Jiangte multi-purpose rescue vehicles are built on proven commercial truck chassis with a rational body layout and modular upper structure. Generator sets, control cabinets, lighting, winches, tail lifts and equipment racking can be fitted to match the mission.

Multi-Purpose Rescue Vehicle
Download Product Manual

Product Highlights

Product Specifications

Product Name	Model JDF5120TXFJY90/M6 Rescue‑Fire Vehicle
Overall Dimensions (mm)	9130×2530×3600
Gross Vehicle Weight (kg)	12350
Kerb Mass (kg)	11900
Front Passenger Seating	2+4
Chassis Model	TGM18.290 B Type‑2 (German MAN)
Number of Axles	2‑axle
Wheelbase (mm)	4725
Tire Specification	295/80R22.5
Fuel Type	Diesel
Emission Standard	GB17691‑2018 National‑VI
Engine Model	D0836LFLBG (MAN)
Displacement / Power / Horsepower	6871ml / 215kW / 292 HP
Main Special Equipment	Truck‑mounted crane, winch, lighting system, integral side protection structure, Q235 rear protection material, WABCO EBS system, rear‑end structure optional
