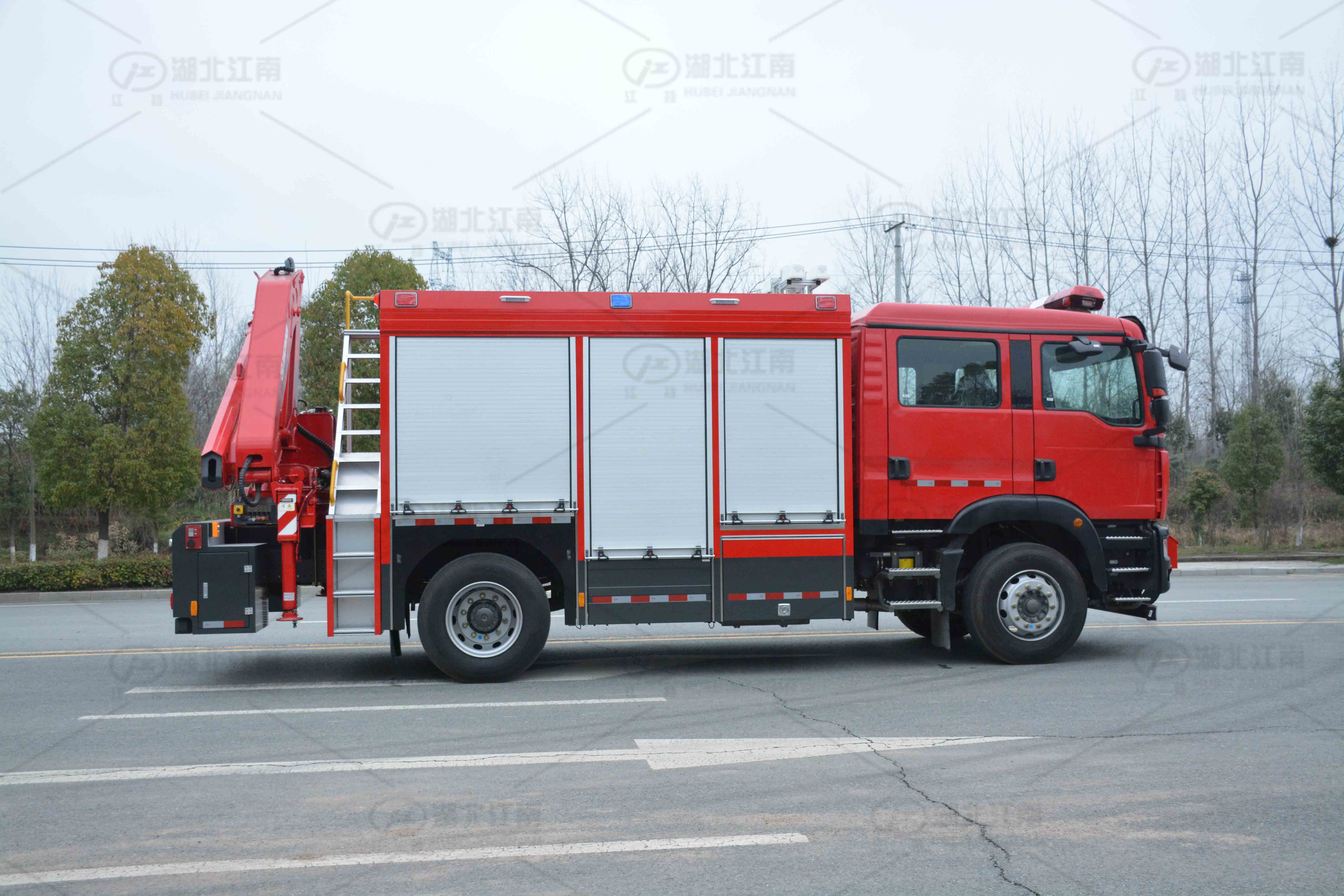

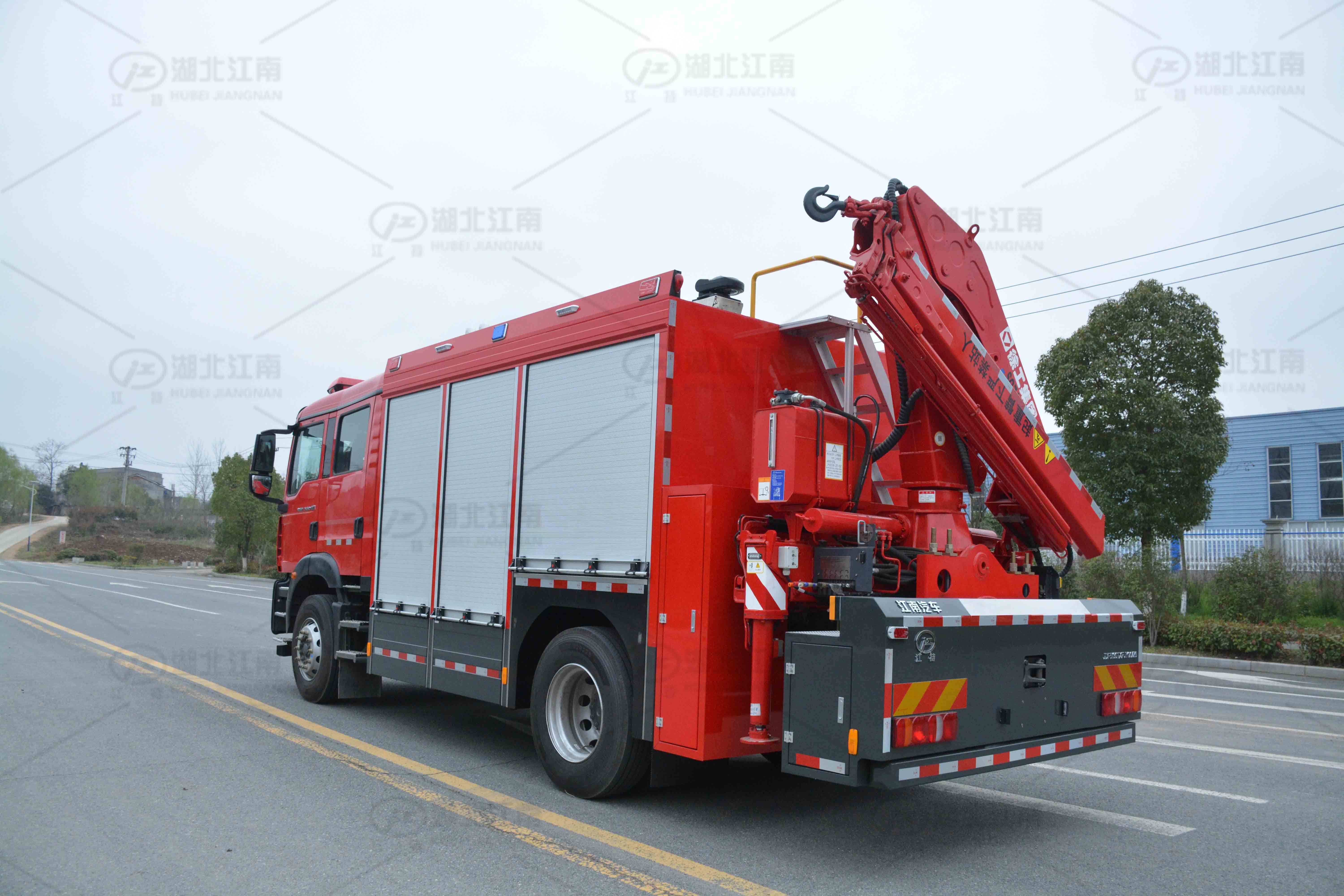

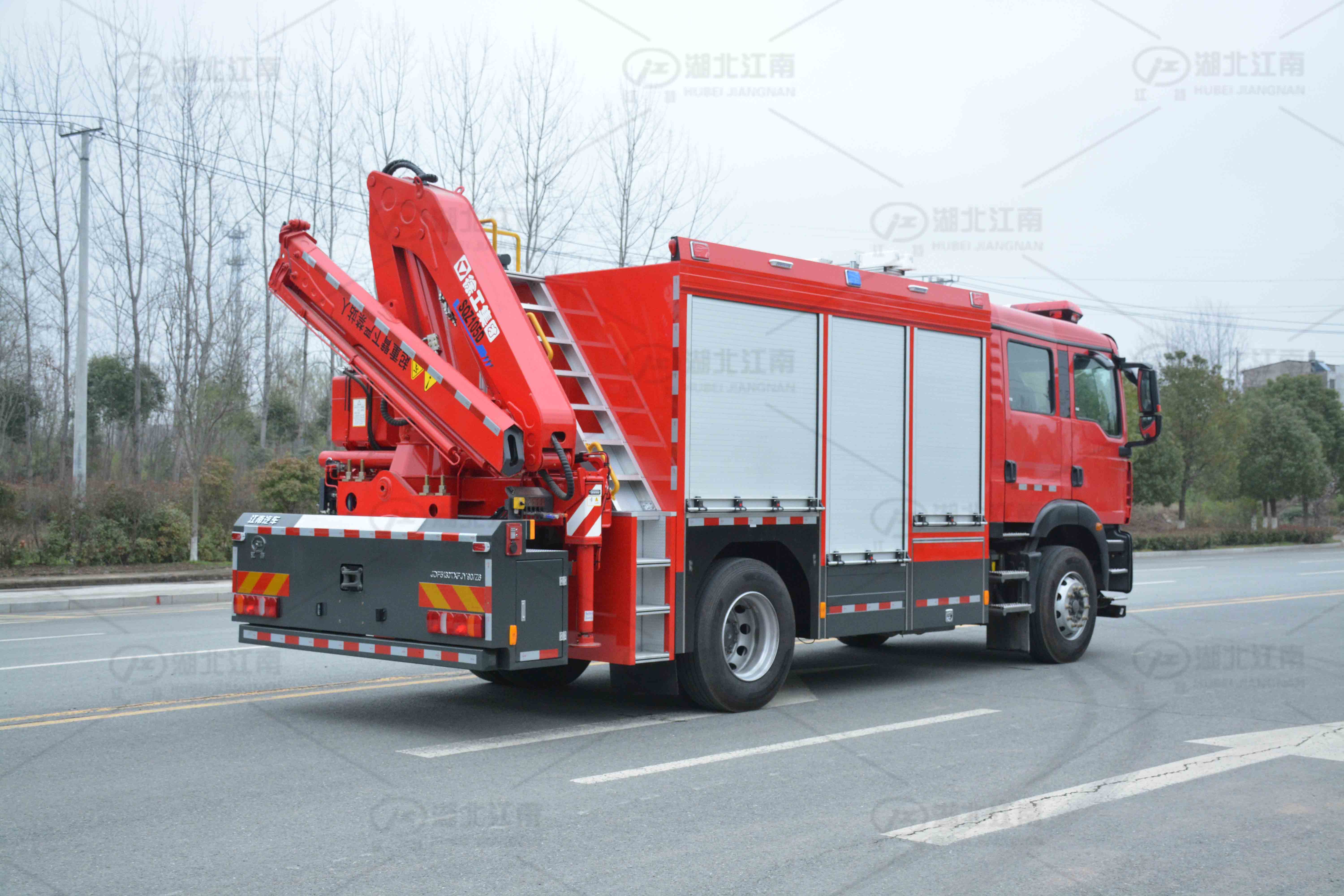

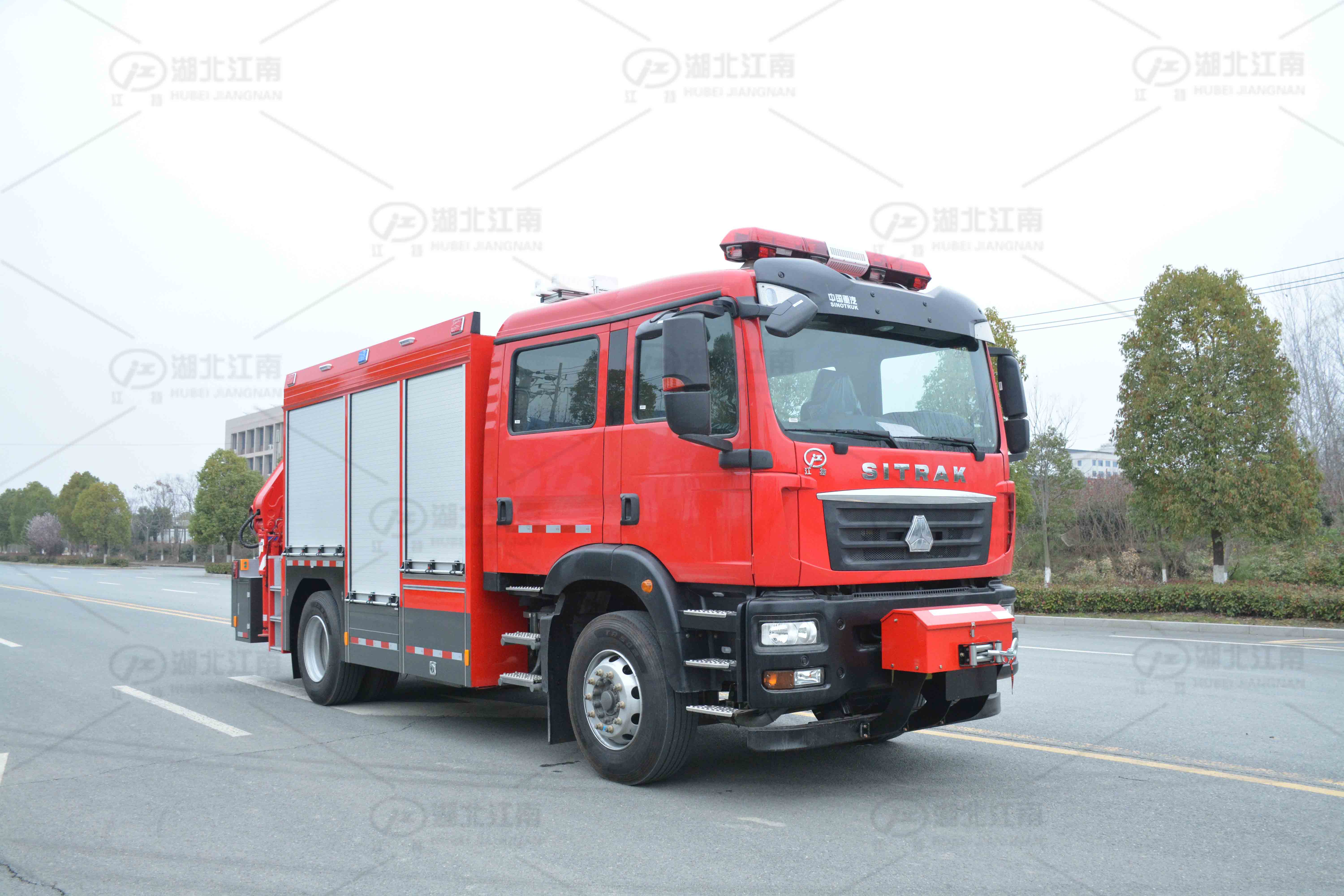

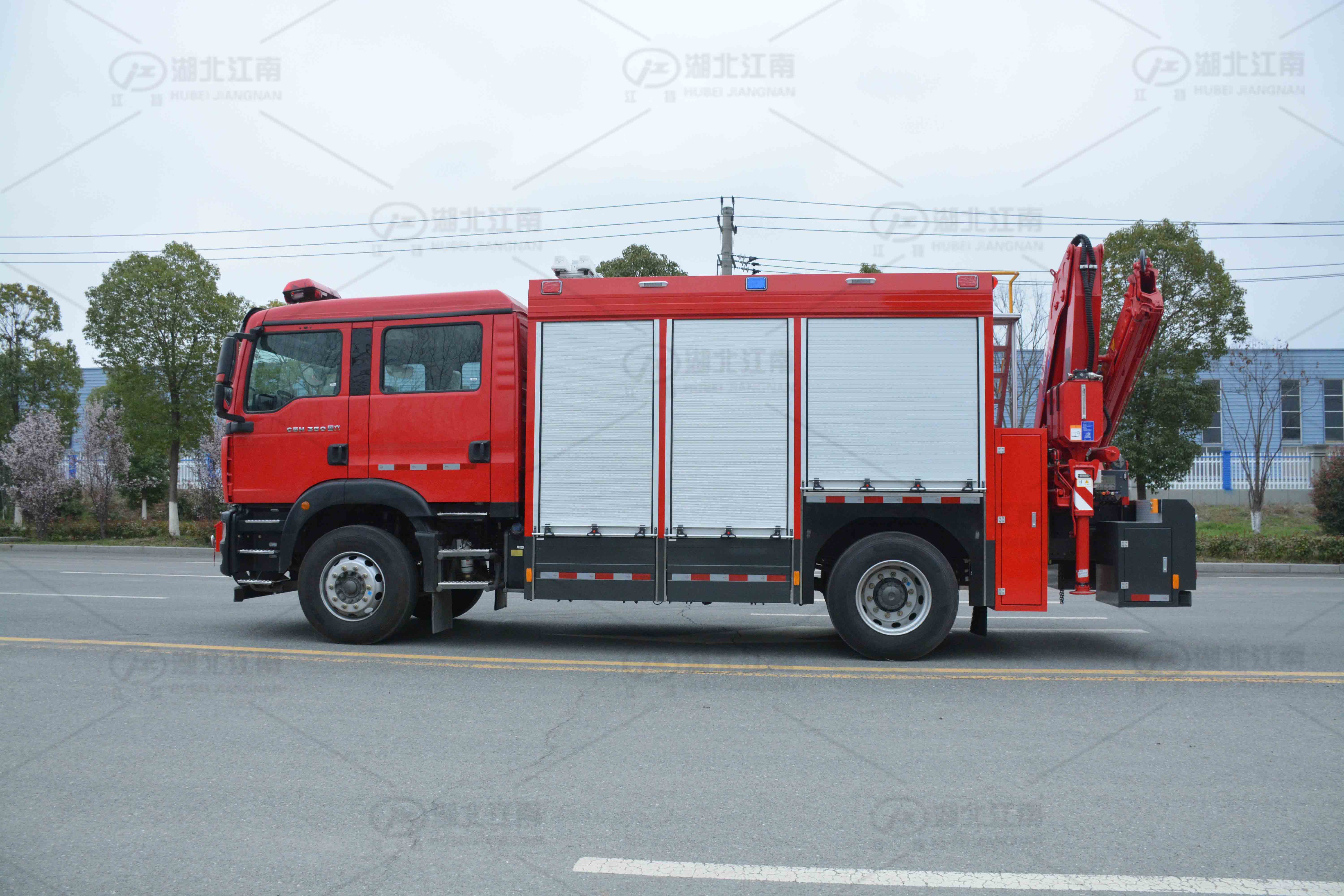

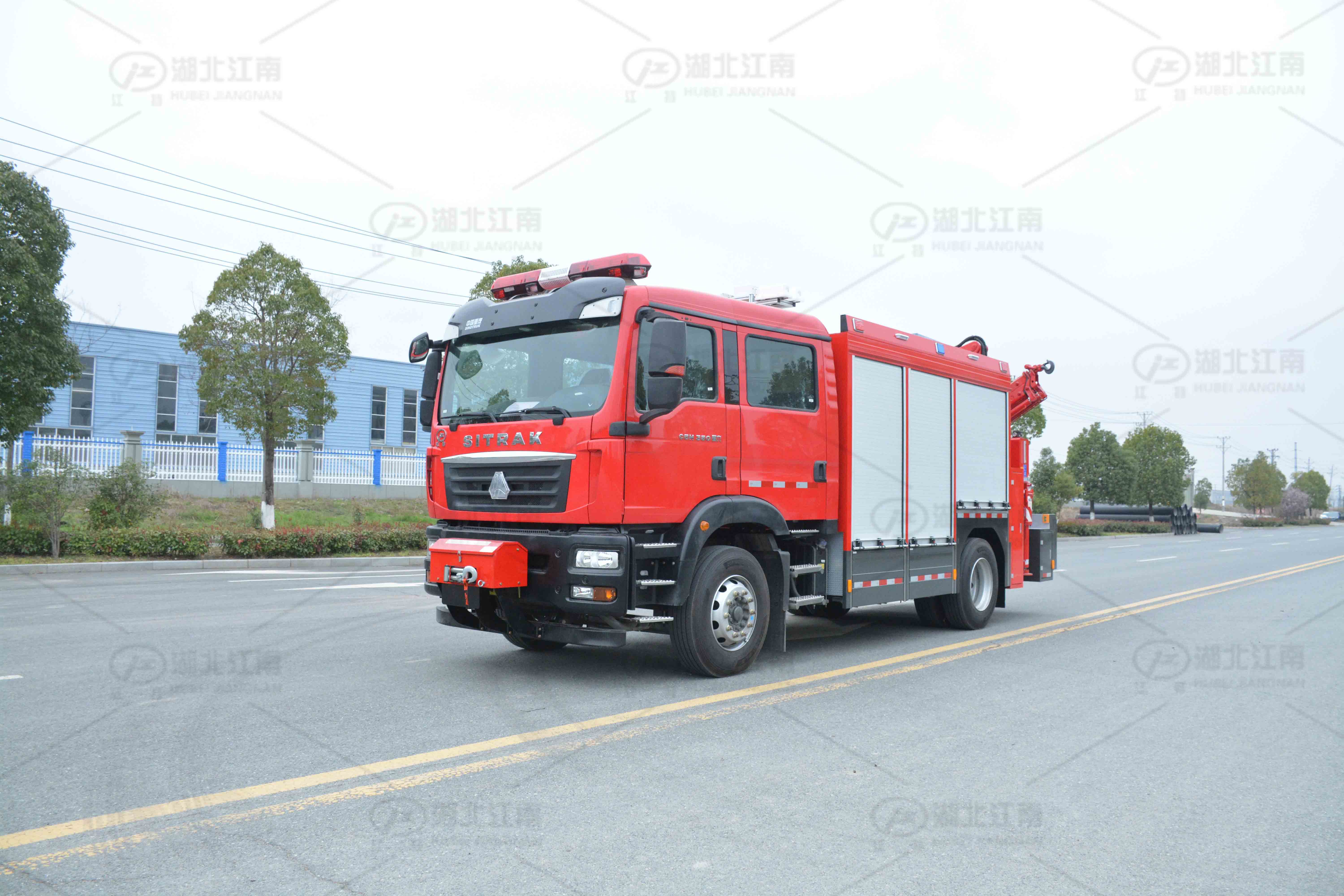

Sitrak Rescue Vehicle

Jiangte multi-purpose rescue vehicles are built on proven commercial truck chassis with a rational body layout and modular upper structure. Generator sets, control cabinets, lighting, winches, tail lifts and equipment racking can be fitted to match the mission.

Product Highlights

Product Specifications

Product Name	Model JDF5130TXFJY90/Z6 Emergency Rescue Fire Vehicle
Overall Dimensions (mm)	8720×2520×3520
Gross Vehicle Weight (kg)	12900
Kerb Mass (kg)	12450
Front Passenger Seating	2+4
Chassis Model	ZZ5206N471GF5 (Sinotruk Sitrak)
Number of Axles	2‑axle
Wheelbase (mm)	4500,4700,4200,5000,5200,5600,5800,3900,6000
Tire Specification	Multiple options: 315/80R22.5, 295/80R22.5, 12R22.5
Fuel Type	Diesel
Emission Standard	GB17691‑2018 National‑VI
Engine	Multiple Sinotruk MC & Weichai WP series engines available, power range: 199‑297kW
Main Special Equipment	Winch, lifting lighting lamp, truck‑mounted crane; integral side protection, Q235 rear protection, WABCO ABS system. Optional cab and rear‑body structure
