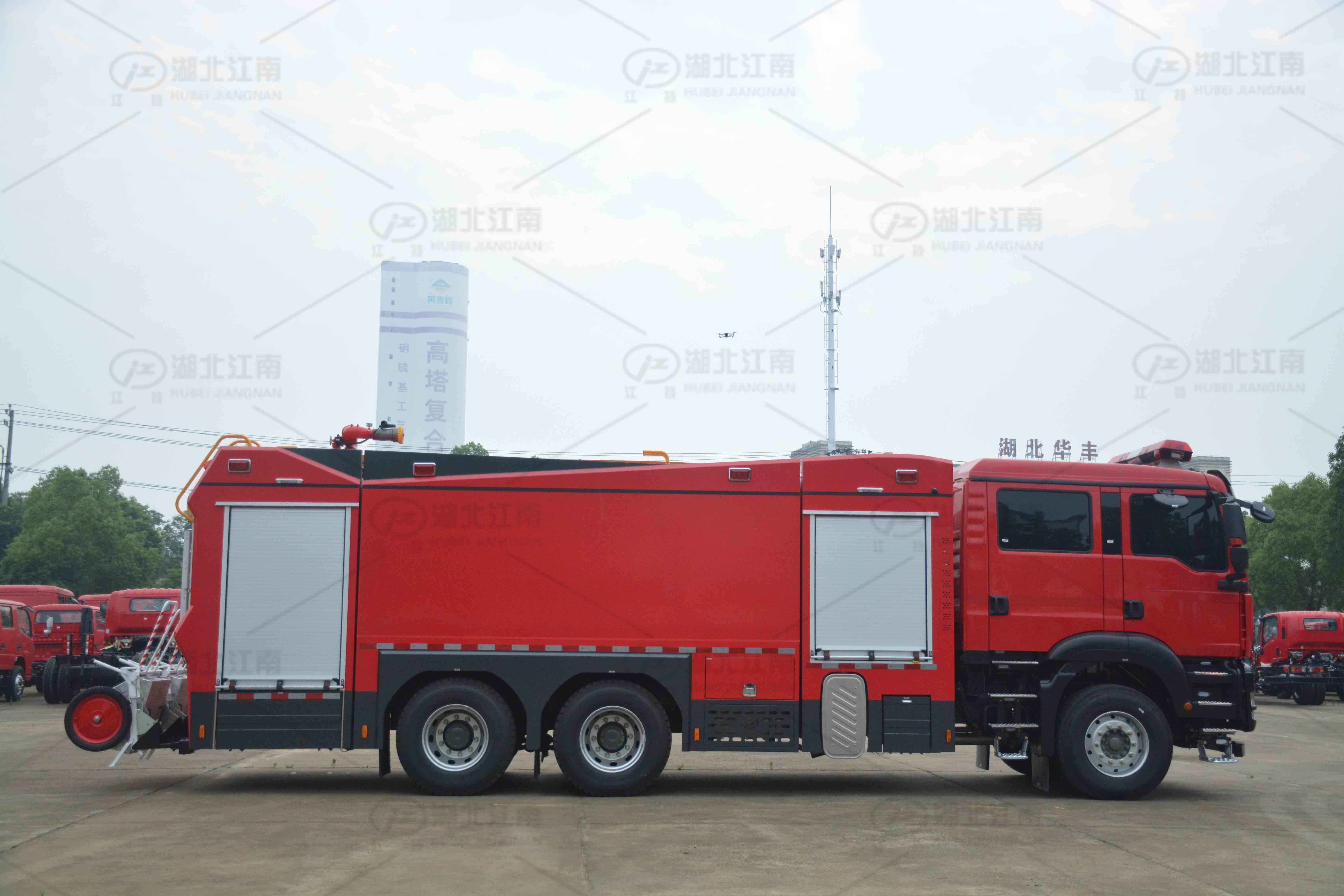

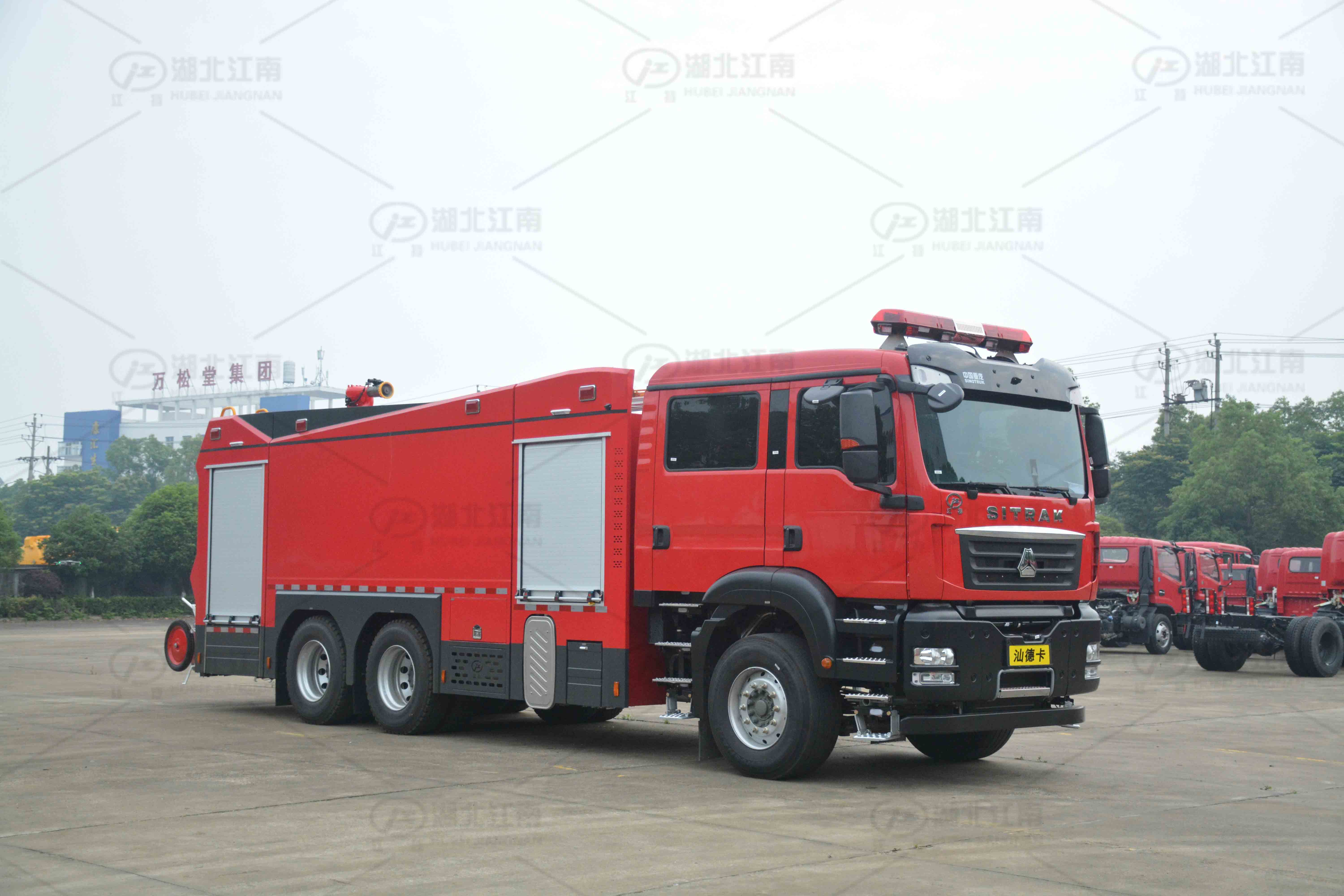

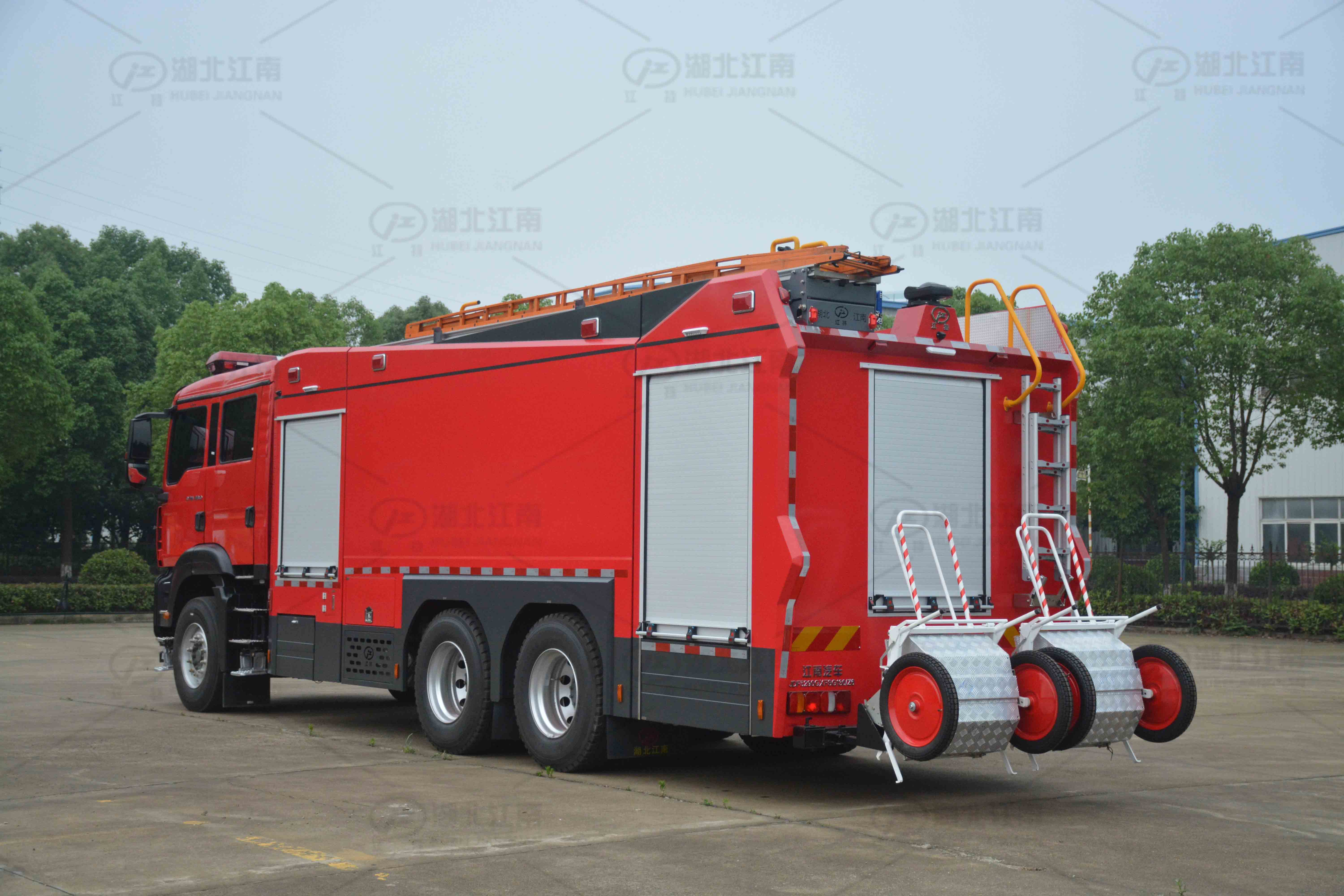

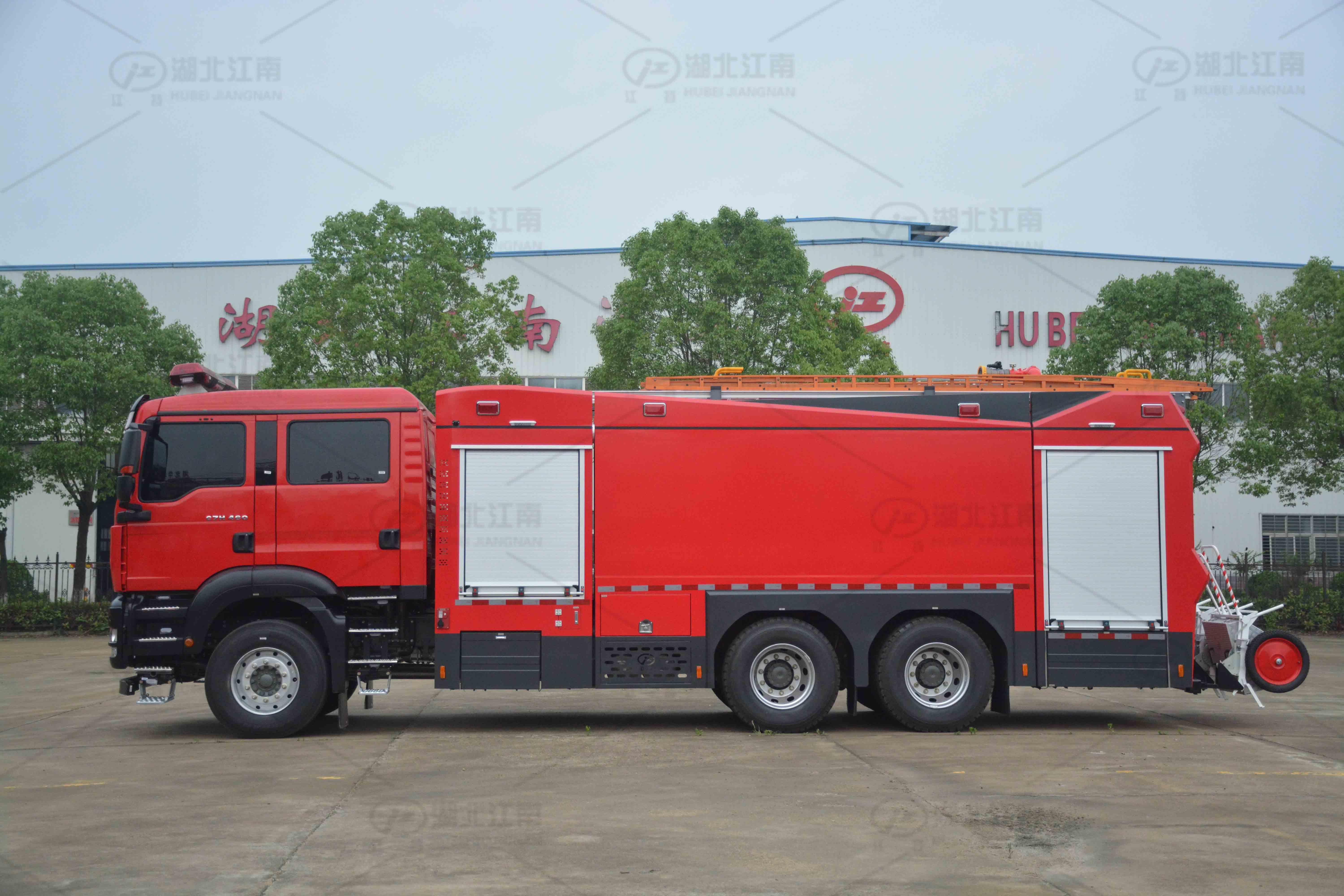

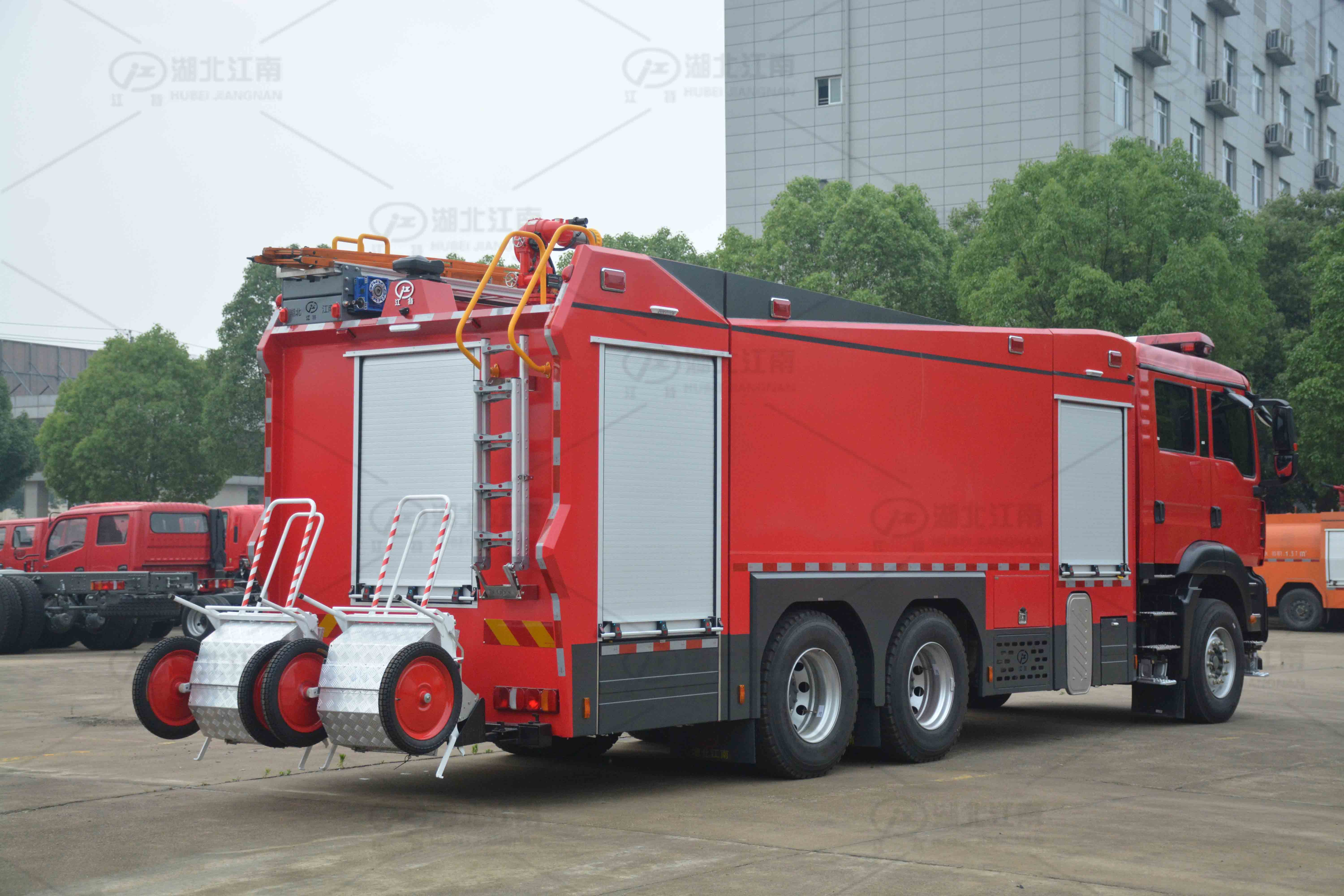

SITRAK 12.8 m³ Foam Fire Truck

Jiangte foam fire trucks carry water and foam concentrate in separate tanks with a proportioning system, delivering foam solution for Class B fires involving oil, fuel and chemicals. Tank capacities, proportioning ratios and monitor performance follow the MIIT announcement for each model, and stainless steel anti-corrosion tanks are available.

Product Highlights

Product Specifications

Item	JDF5290GXFPM130/Z6 Foam Fire Truck
Wheelbase (mm)	4300+1400 / 4325+1350, multiple options
Chassis model	ZZ5350V524MF5
Engine model	WP10.5H / WP11H / MC11 / MC13 series, China VI diesel (multiple options)
Overall dimensions (mm)	11055 × 2550 × 3620
Drive type	6×4 (3 axles)
Engine power (kW)	297–444 (varies with chassis engine)
Tank capacity	Total 12,800 L (Water 10,700 L / Foam 2,100 L)
Fire pump	Standard configuration (per MIIT announcement)
Fire monitor	Standard configuration (per MIIT announcement)
Monitor range (m)	Per monitor model equipped
Specifications are subject to the MIIT announcement; customization available on request.
