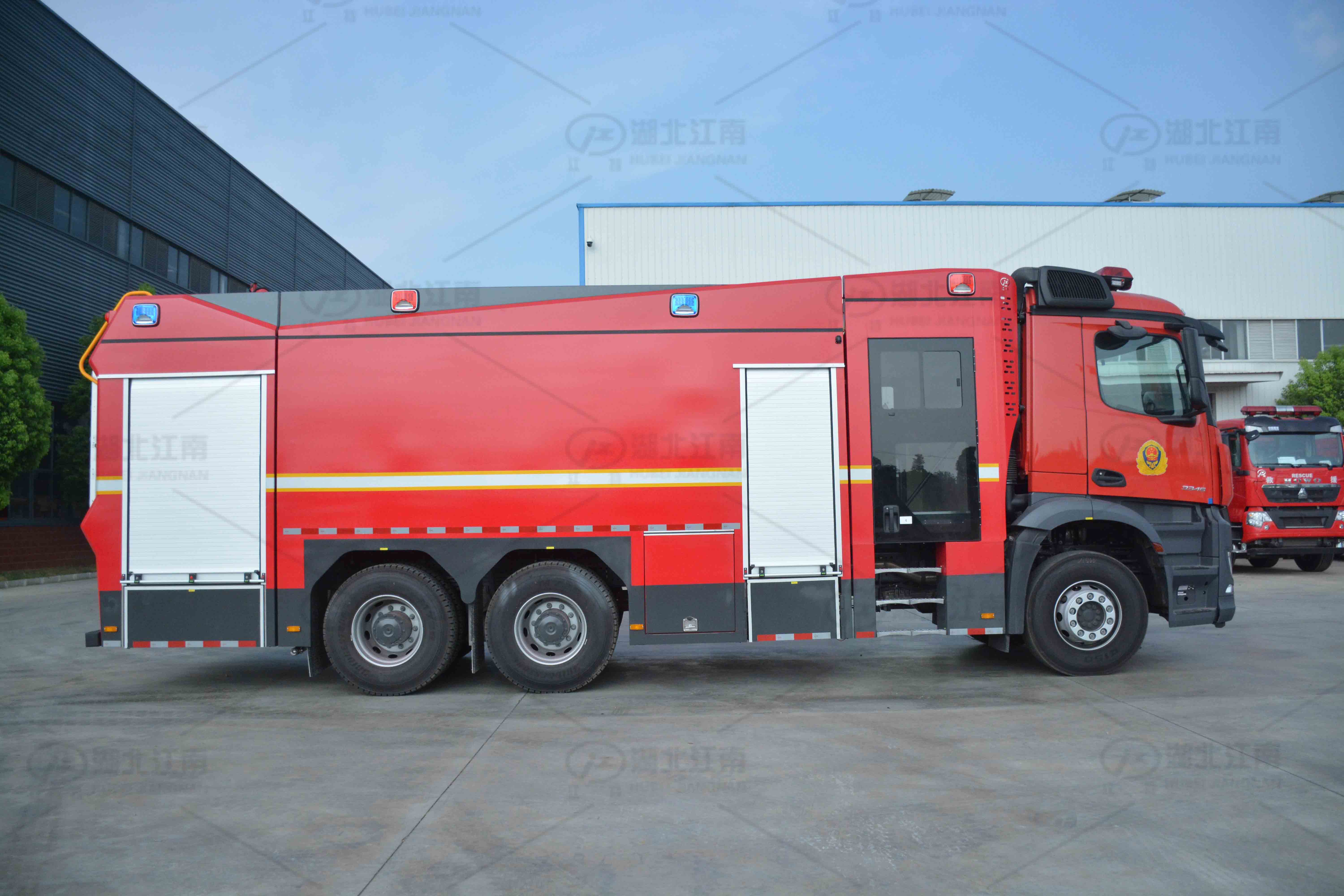

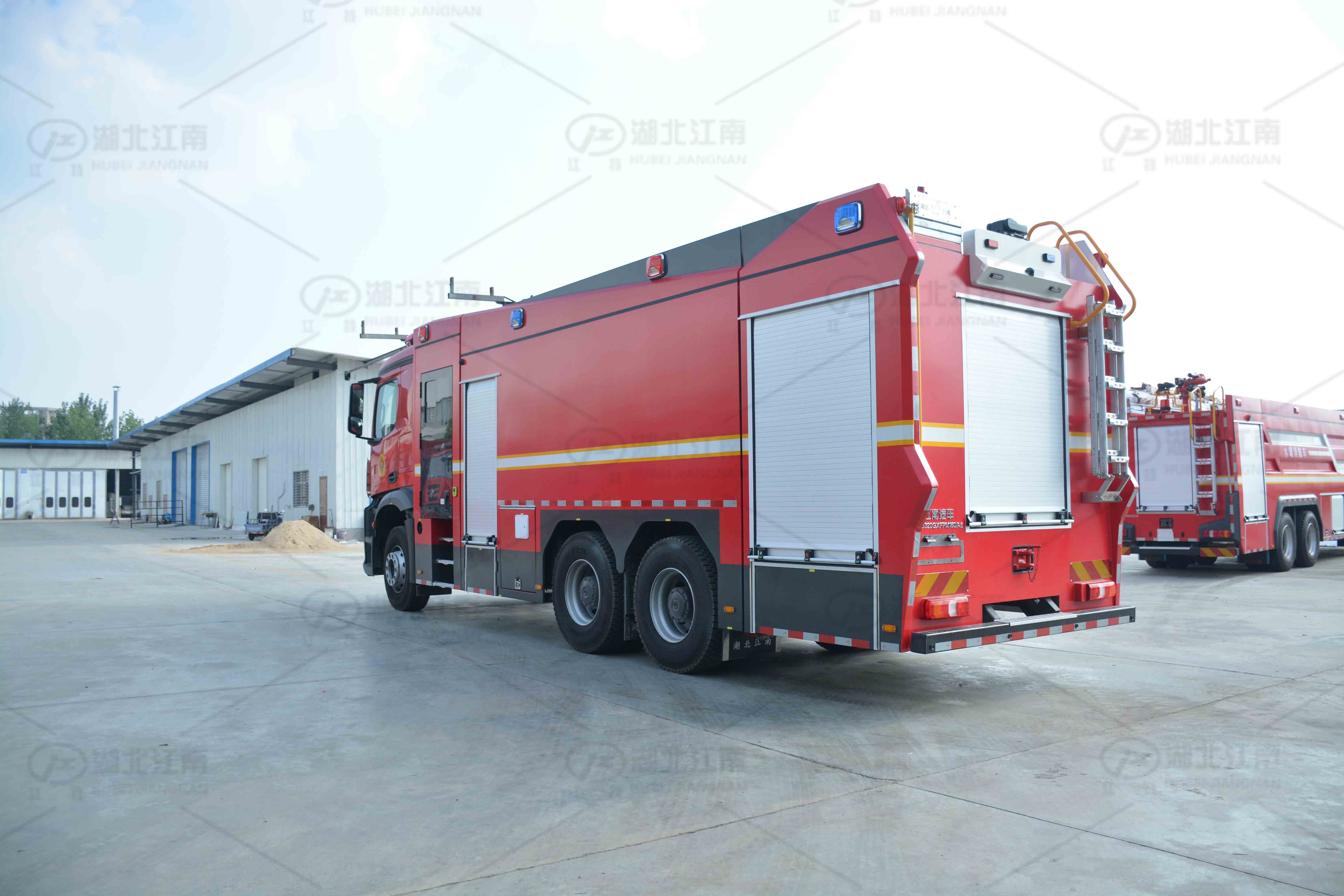

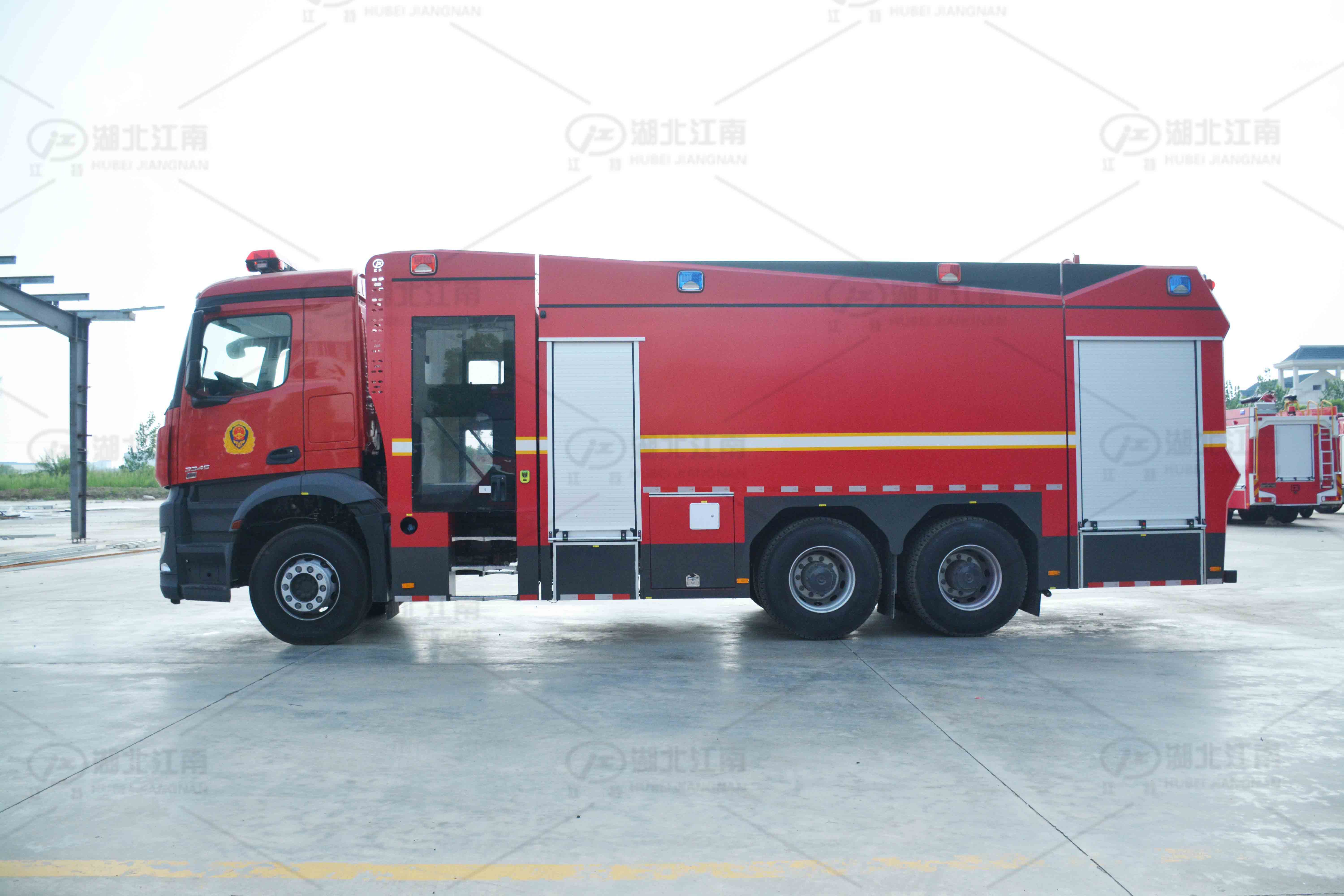

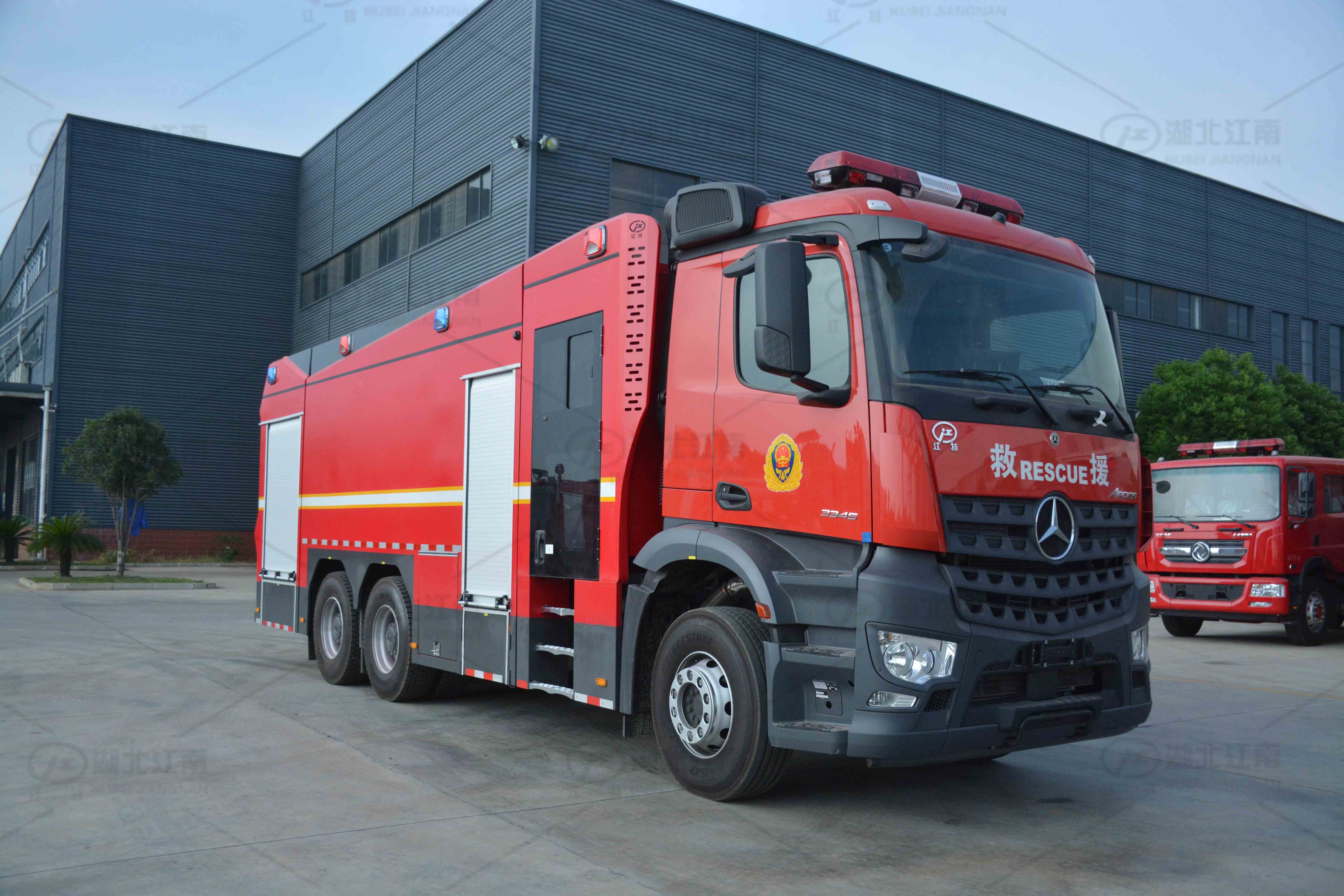

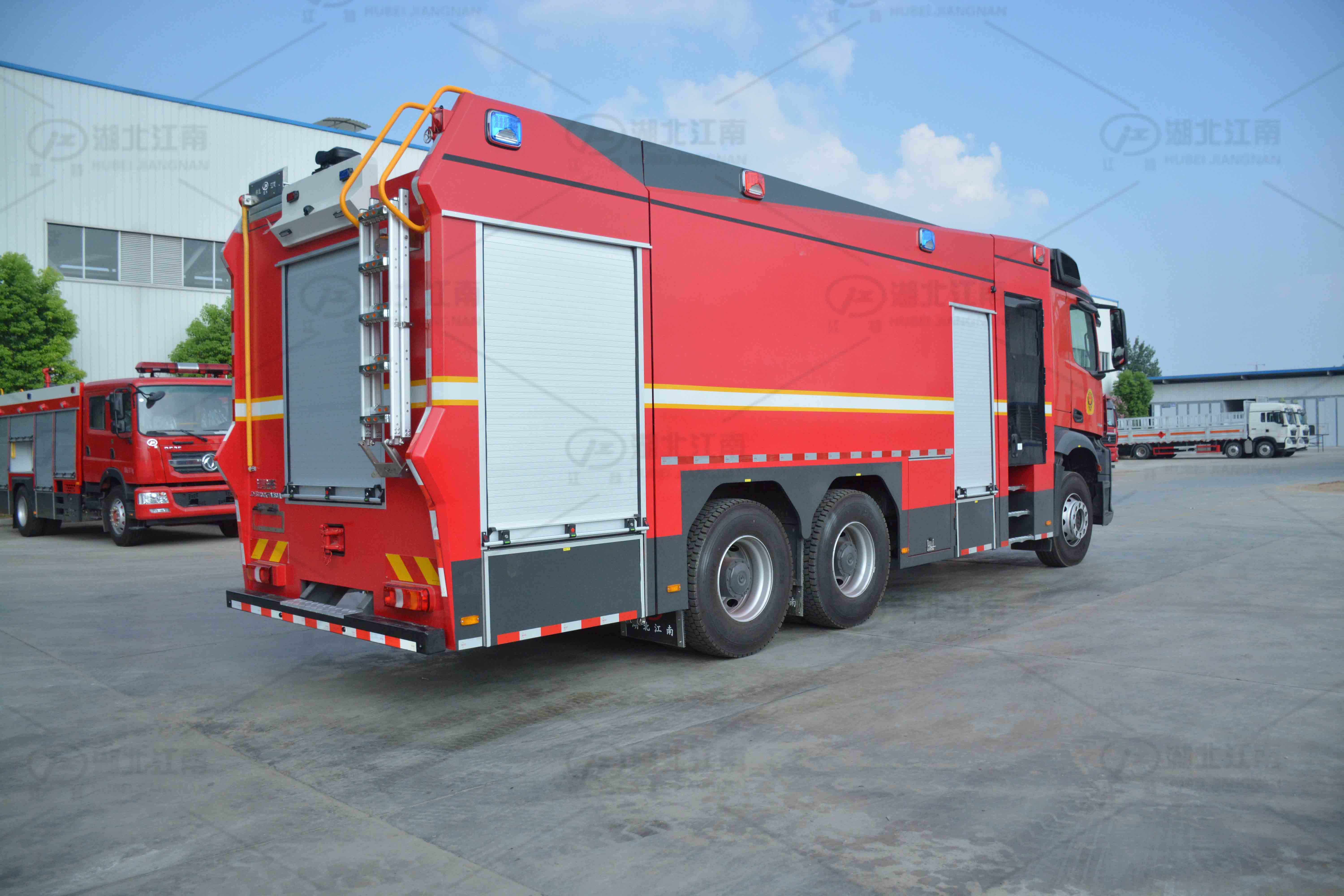

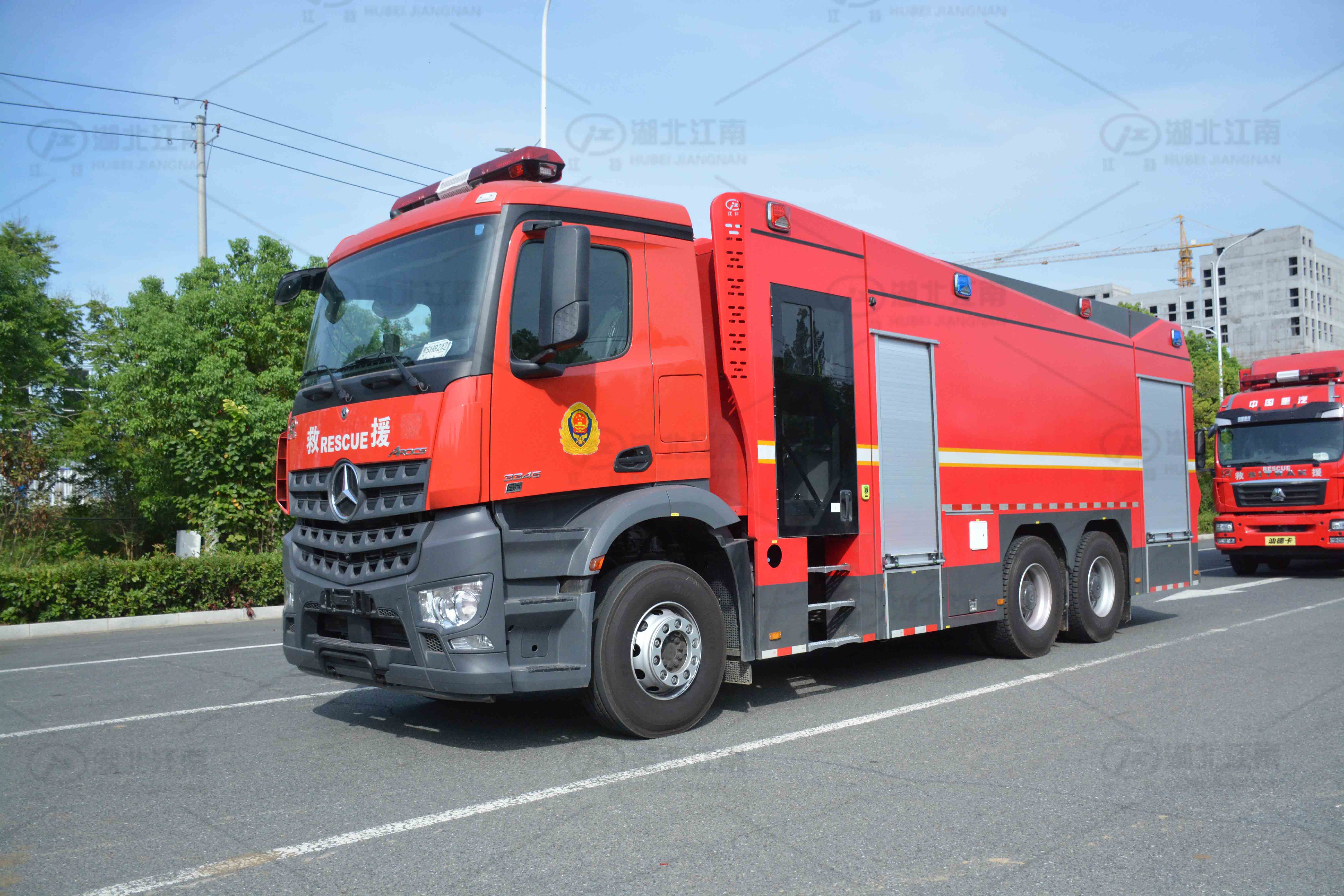

Mercedes-Benz 18-ton Foam Fire Truck

Jiangte foam fire trucks carry water and foam concentrate in separate tanks with a proportioning system, delivering foam solution for Class B fires involving oil, fuel and chemicals. Tank capacities, proportioning ratios and monitor performance follow the MIIT announcement for each model, and stainless steel anti-corrosion tanks are available.

Foam Fire Truck
Download Product Manual

Product Highlights

Product Specifications

Item	JDF5320GXFPM160/A6 Foam Fire Truck
Wheelbase (mm)	4500+1350
Chassis	Mercedes-Benz Arocs 3345E6, 6×4
Engine	OM471LA.6-63
Overall dimensions (mm)	10000×2510×3700
Drive type	6×4
Engine power (kW)	331
Tank volume	11.70 m³ water + 4.10 m³ foam
Fire pump	Standard as per MIIT announcement
Fire monitor	Standard as per MIIT announcement
Monitor range (m)	According to the monitor fitted
Specifications are subject to the MIIT announcement; customization available on request.
