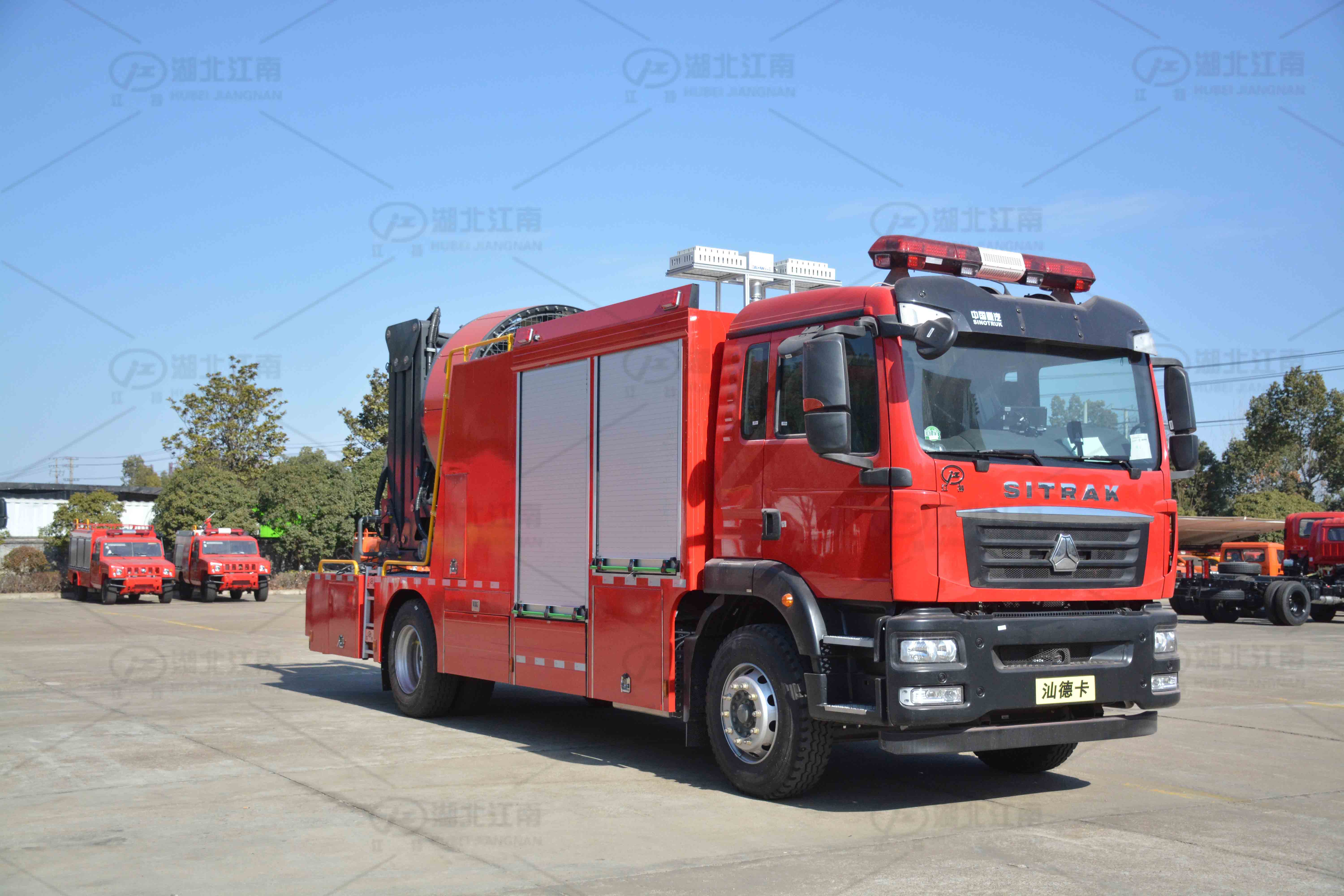

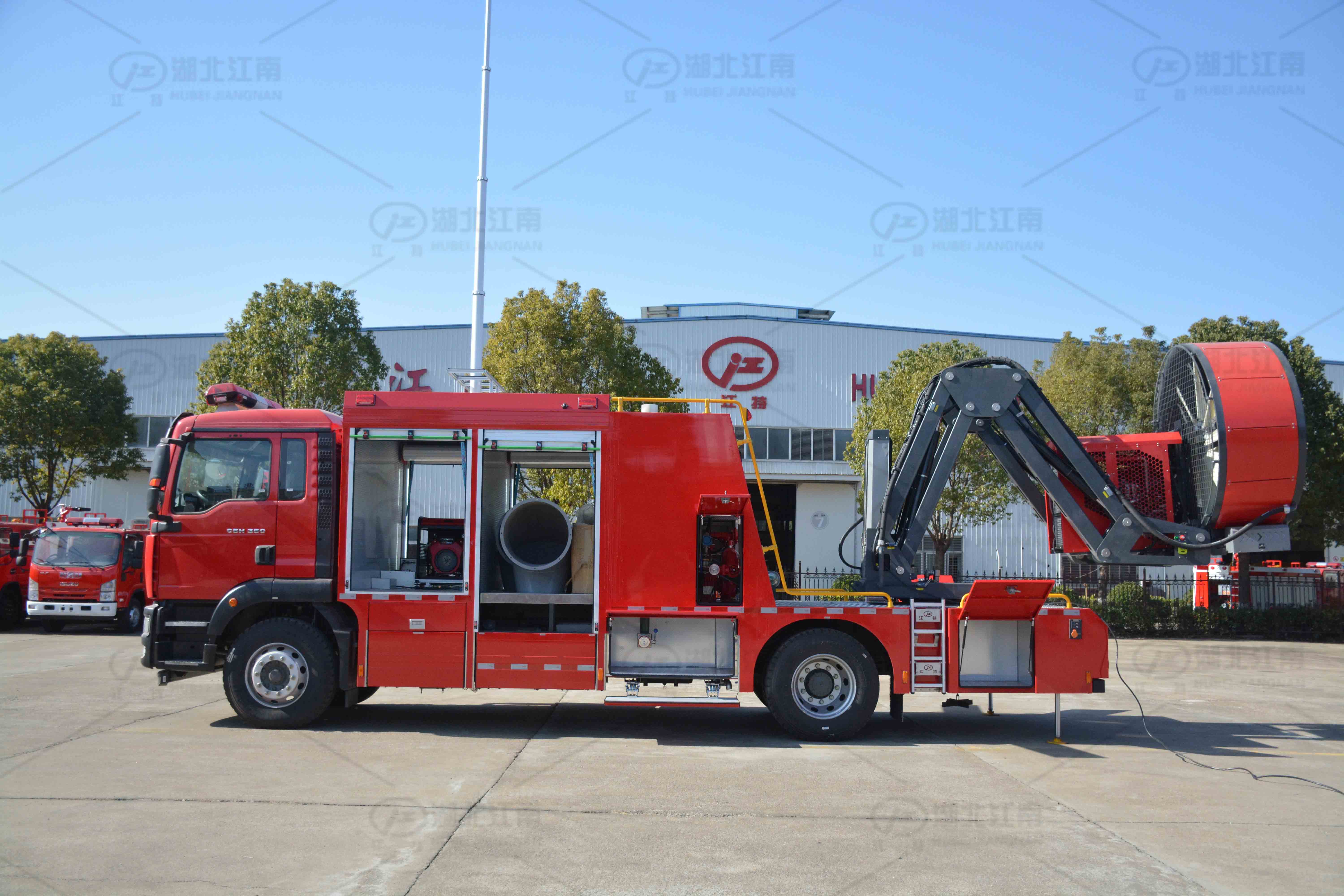

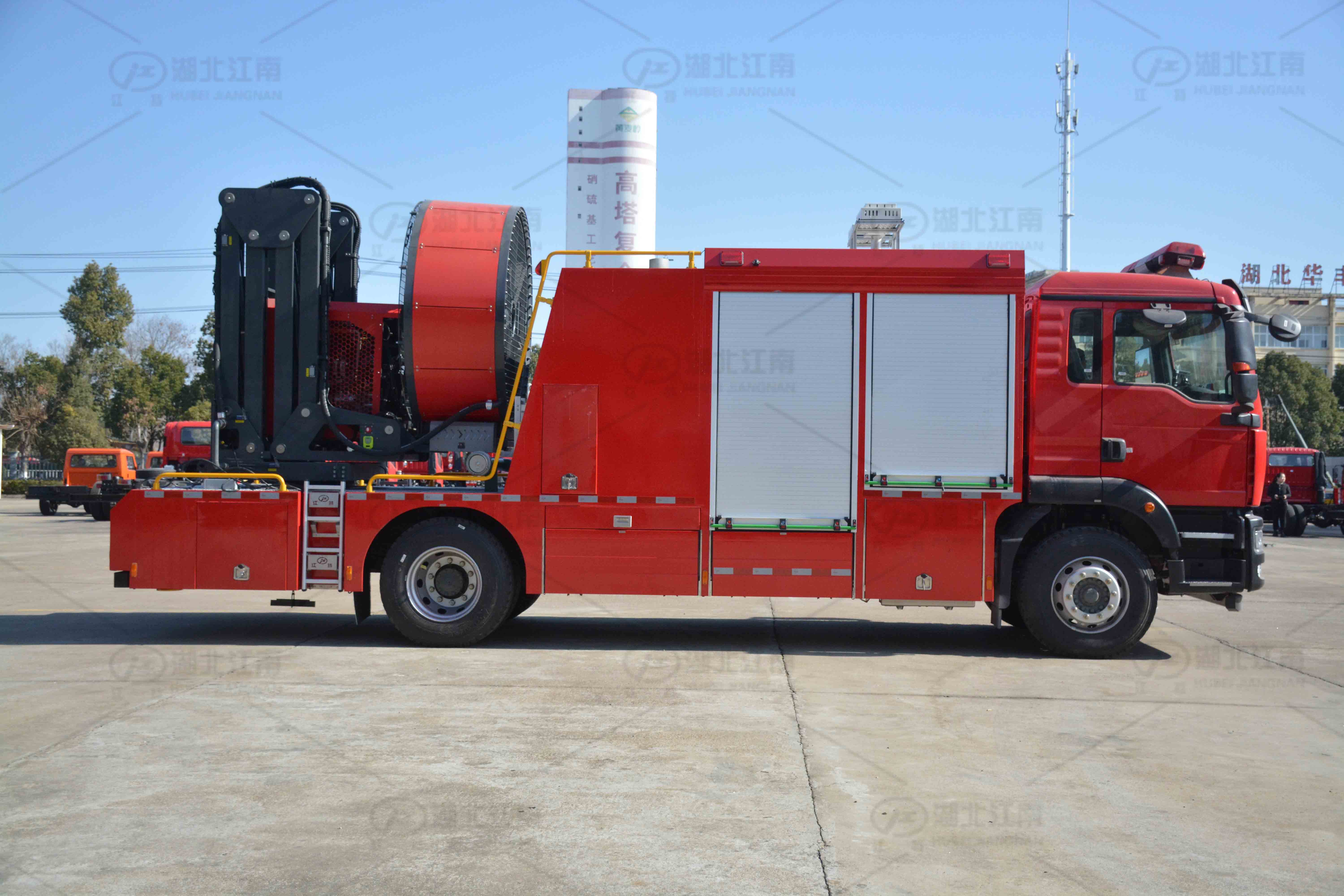

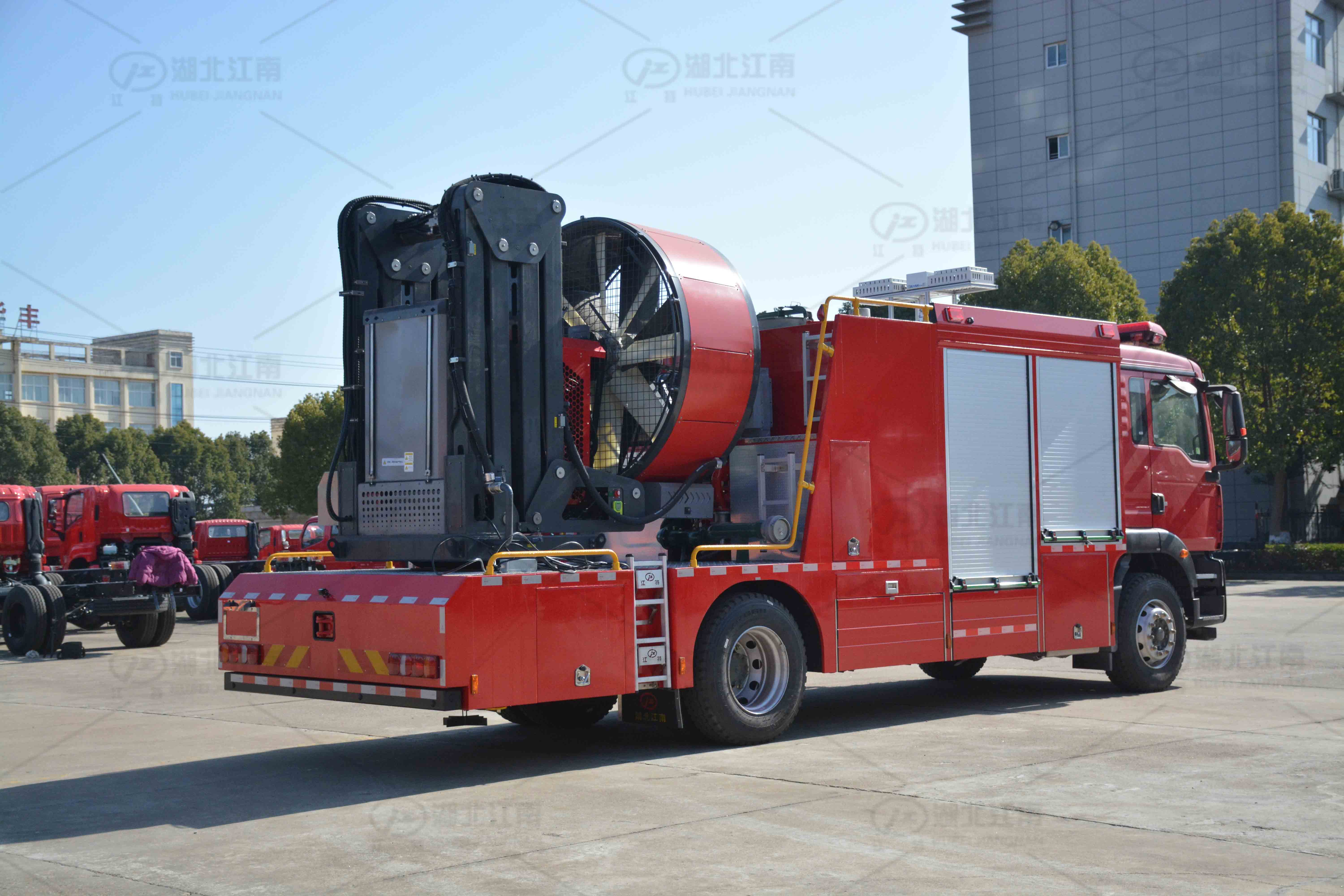

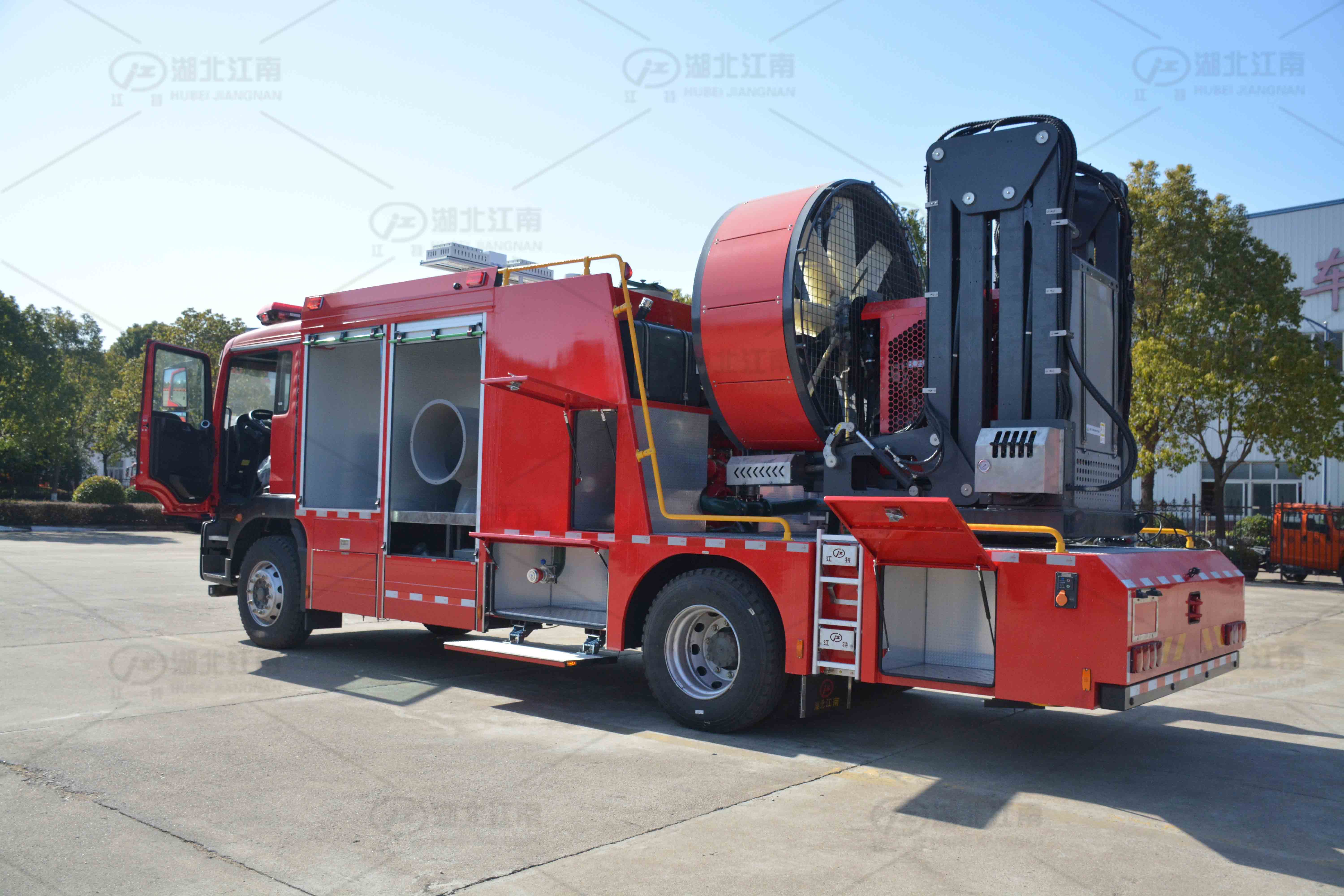

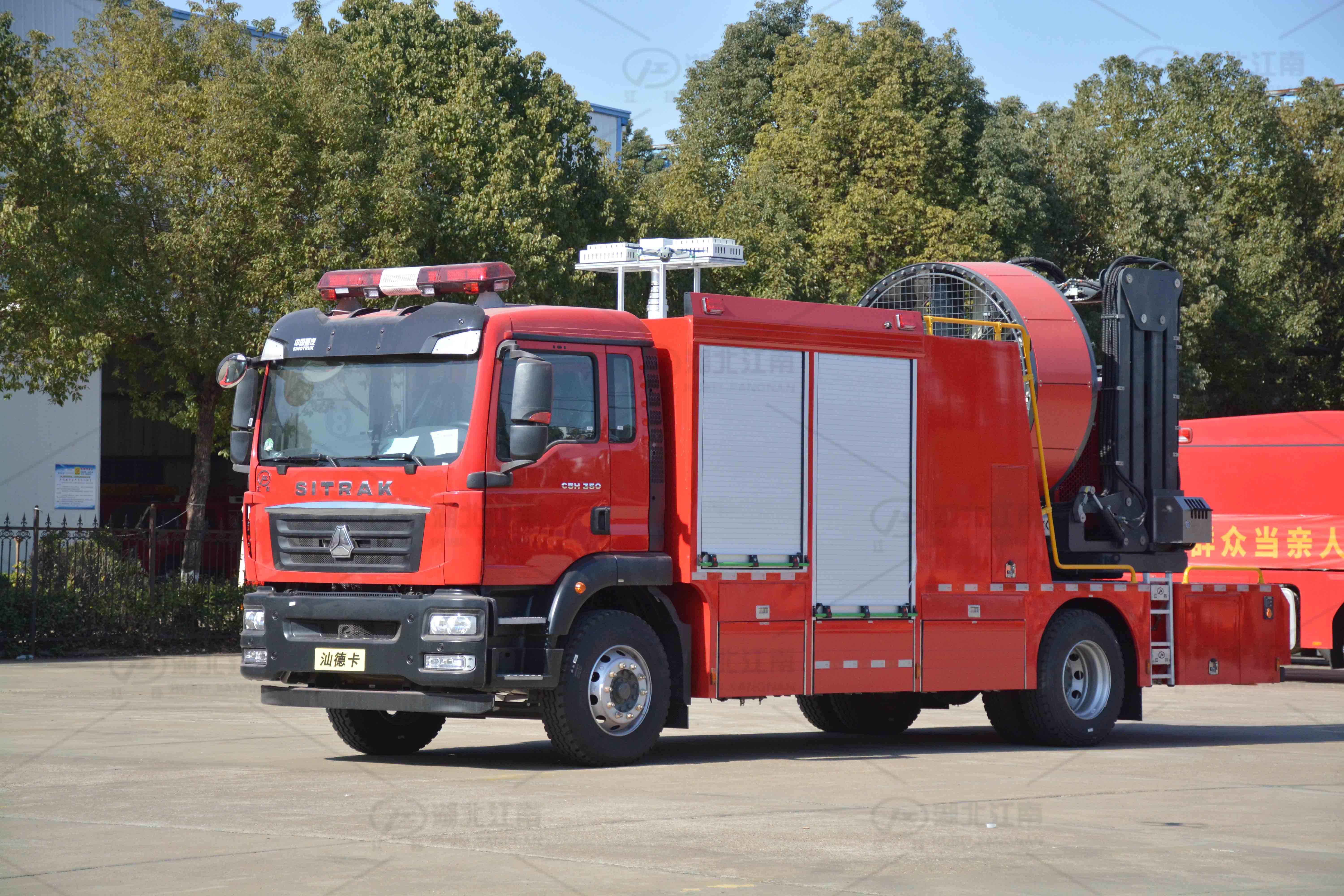

Sitrak Smoke‑Ventilation Fire Truck

Jiangte smoke evacuation fire trucks remove heat and toxic smoke from tunnels, underground spaces and large buildings with high-volume fans, creating safer conditions for firefighting and rescue crews. Fan capacity, power source and chassis options follow the MIIT announcement of each model.

Product Highlights

Product Specifications

Product Name	Model JDF5160TXFPY68 Smoke‑Ventilation Fire Truck
Overall Dimensions	9070×2510×3700mm
Gross Vehicle Weight	16000kg
Kerb Mass	13700kg
Rated Payload	2150kg
Chassis Model	ZZ5206N501GF1 (Sitrak)
Tire Specification	295/80R22.5
Engine Model	Multiple optional models: MC07 / WP7 / WP8 series
Power	Multiple power options: 191‑258kW
Water‑tank Volume	2.15m³
Emission Standard	GB17691‑2018 National‑VI
Special Equipment	Smoke‑ventilation device, lighting system
