Fire-Fighting UAV Transport Rescue Vehicle
Fire-Fighting UAV Transport Rescue Vehicle
Manufactured by Hubei Jiangnan Special Automobile Co., Ltd. · Air-Ground Coordination, One Vehicle, Multiple Capabilities
I. Product Overview

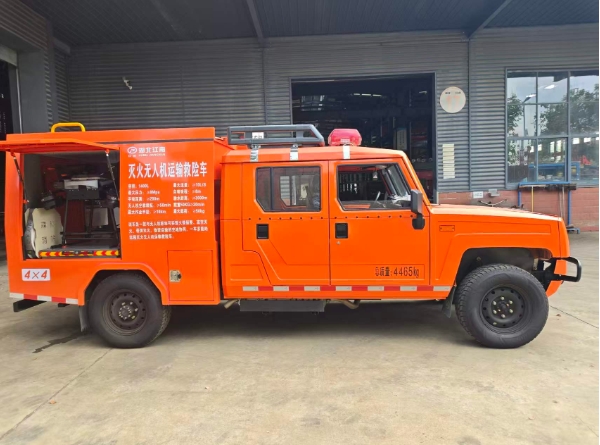

The Fire-Fighting UAV Transport Rescue Vehicle is an air-ground coordinated emergency response vehicle developed by Hubei Jiangnan Special Automobile Co., Ltd. Built on a 4×4 off-road chassis, the box-body cargo compartment integrates a UAV take-off and landing platform, while the on-board 1,400 L water/agent tank provides continuous replenishment for the aircraft. Upon arriving near the fire scene, the UAV takes off to perform fire reconnaissance, high-altitude spraying, fire-extinguishing bomb delivery and emergency supply drop-off, achieving integrated ground transport support with precise aerial response.
II. Four Core Functions
Fire Reconnaissance — The UAV conducts aerial reconnaissance and transmits real-time data on fire points, fire lines and spread trends, providing a reliable basis for command decisions.
High-Altitude Firefighting — Hovering and precise spraying at height handles cliff fires, crown fires and smoldering spots.
Bomb-Based Firefighting — Aerial delivery of fire-extinguishing bombs to first contain and then extinguish intense fire points.
Supply Delivery — With a maximum payload of 50 kg, food, drinking water and breathing apparatus can be delivered directly by air to trapped persons.
III. Vehicle Highlights
4×4 Off-Road Capability for Complex Terrain: A non-load-bearing 4×4 chassis with a reinforced front bumper ensures passage through mountainous forest areas and rural dirt roads. With a gross vehicle weight of 4,465 kg, the vehicle can be driven with a standard license (China, GVW under 4.5 t), allowing grassroots teams to operate it quickly.

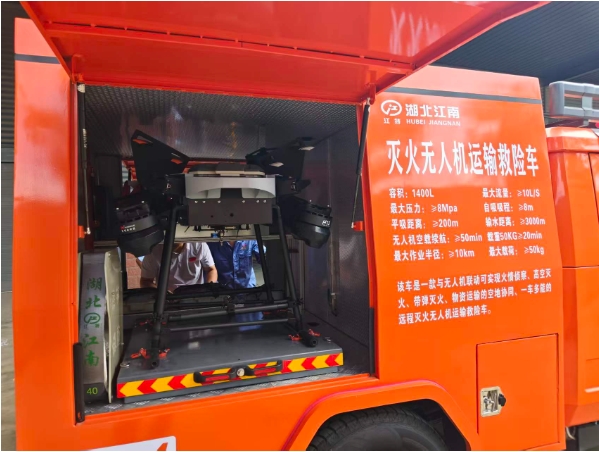

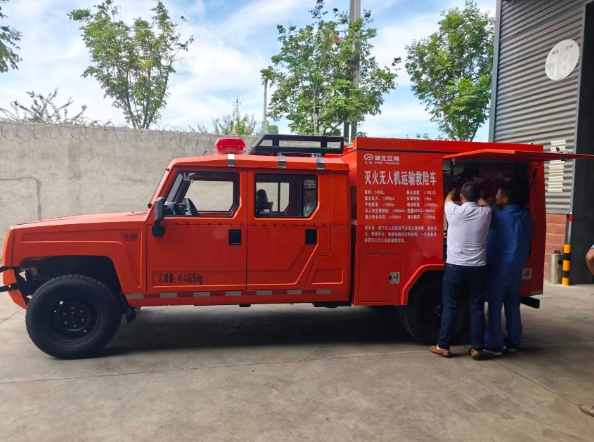

Box-Body Compartment with Integrated Take-off and Landing: Large side and rear flip-up doors open fully for operation; the in-compartment UAV platform features a quick-lock mechanism for stable transport and rapid deployment. A rear access ladder facilitates crew operations.
Water Supply System for Continuous Support: A 1,400 L capacity with a self-priming suction head of 8 m and a water delivery distance of 3,000 m enables replenishment and operation simultaneously, sustaining the UAV's firefighting capability.
IV. Main Technical Parameters
| Parameter | Value |
| Tank capacity | 1,400 L |
| Maximum pressure | ≥ 8 MPa |
| Maximum flow rate | ≥ 10 L/s |
| Self-priming suction head | ≥ 8 m |
| Horizontal suction distance | ≥ 200 m |
| Water delivery distance | ≥ 3,000 m |
| UAV endurance, no load | ≥ 50 min |
| UAV endurance, 50 kg payload | ≥ 20 min |
| UAV maximum payload | ≥ 50 kg |
| Maximum operating radius | ≥ 10 km |
| Gross vehicle weight | 4,465 kg |
| Drive type | 4×4 |
| Specifications are subject to the product documentation; customization available on request. | |
V. Applications
Forest and grassland fire prevention: Poor road conditions and concealed fire points in forest areas make UAV reconnaissance plus aerial attack a natural fit.
Mountain and cliff fires: The vehicle approaches the nearest accessible point while the UAV crosses terrain barriers within a 10 km operating radius.
Early-stage village and township fires: The compact body allows the vehicle to enter villages and narrow lanes, enabling rapid response to contain fires at an early stage.
Emergency rescue support: An aerial supply channel for flood relief, mountain search and rescue, and similar scenarios.
For configuration options and pricing, please leave a message online or contact us through this website. Our technical staff will follow up with you one-to-one.
