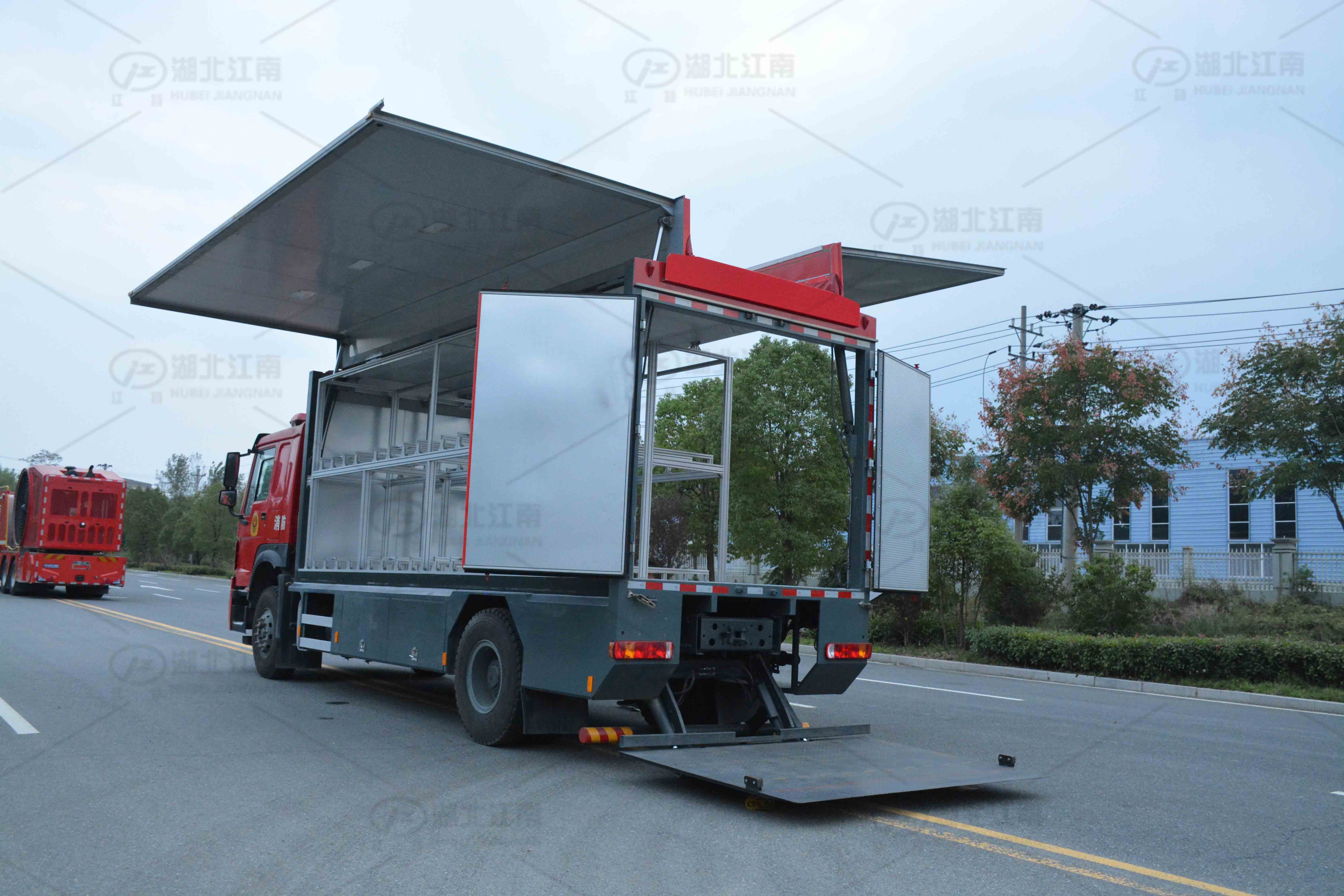

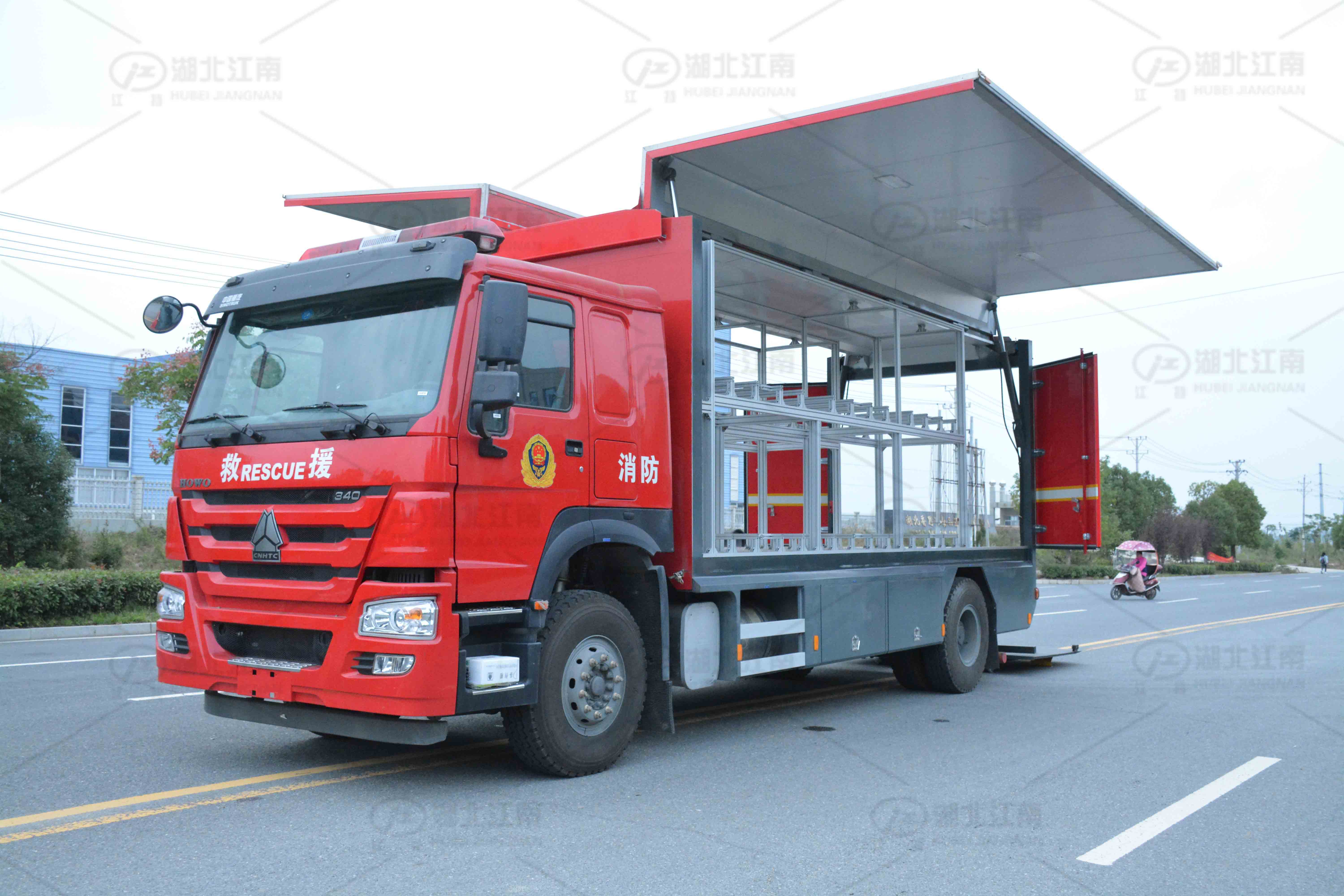

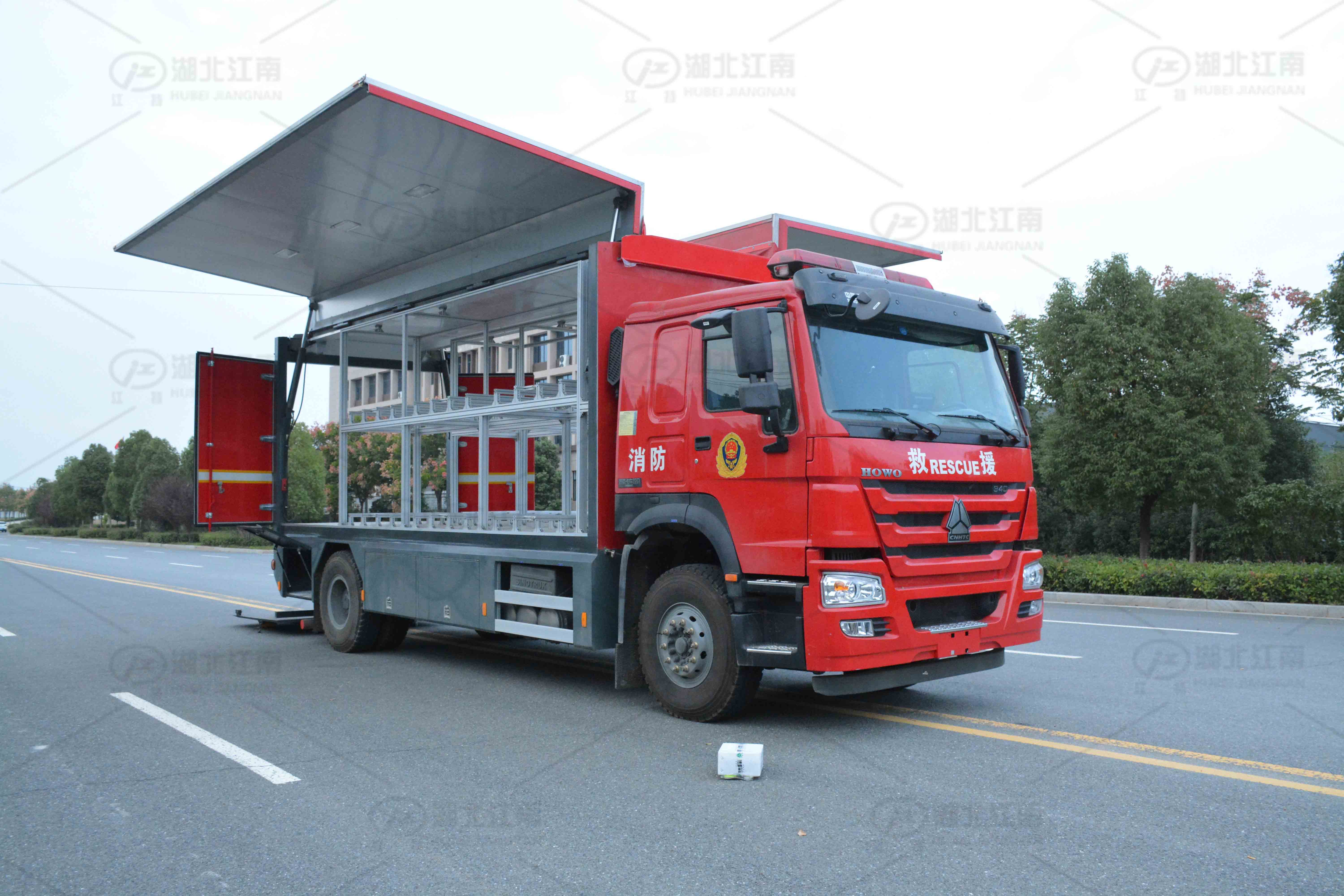

Wing-Body Rescue Truck

Jiangte emergency support fire trucks stand behind the fighting crews: equipment supply, power generation, lighting and crew welfare functions keep front-line units operating through extended incidents. Support functions and equipment sets follow the MIIT announcement of each model.

Product Highlights

Product Specifications

Product Name	Jiangte Brand Model JDF5120XXHZ6 Rescue Vehicle
Overall Dimensions (mm)	8360,8750×2550×3750
Gross Vehicle Weight (kg)	12425,12490
Kerb Mass (kg)	12295
Front‑row Passengers (Persons)	2‑3
Chassis Model	ZZ1187K501GF1
Wheelbase (mm)	4500
Fuel Type	Diesel
Emission Standard	National VI
Engine Model	WP Series, MC Series
Engine Power (kW)	170‑235
Special Equipment	On‑board power system, rescue equipment and tools; optional electric winch, EBS, speed‑limiting device
