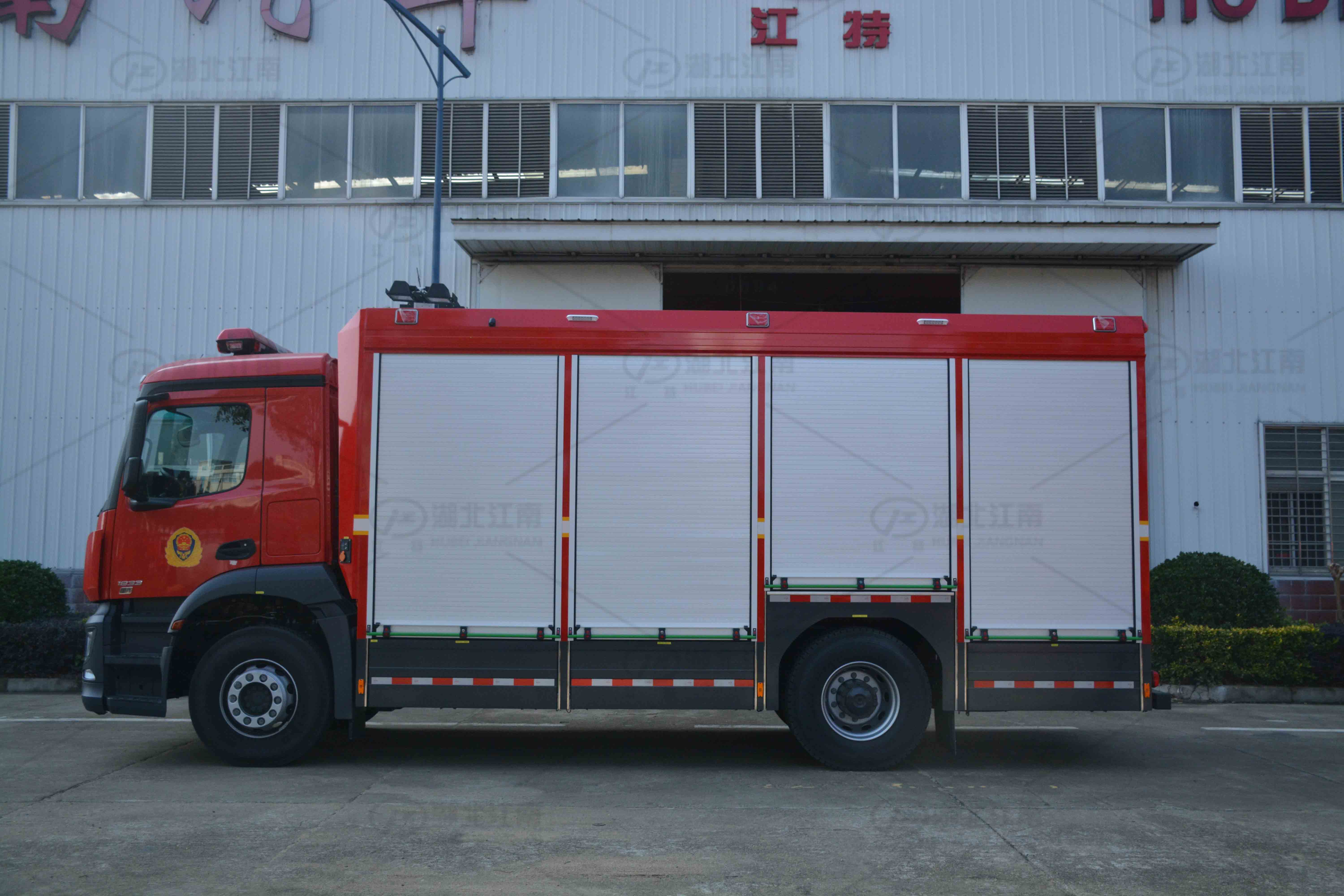

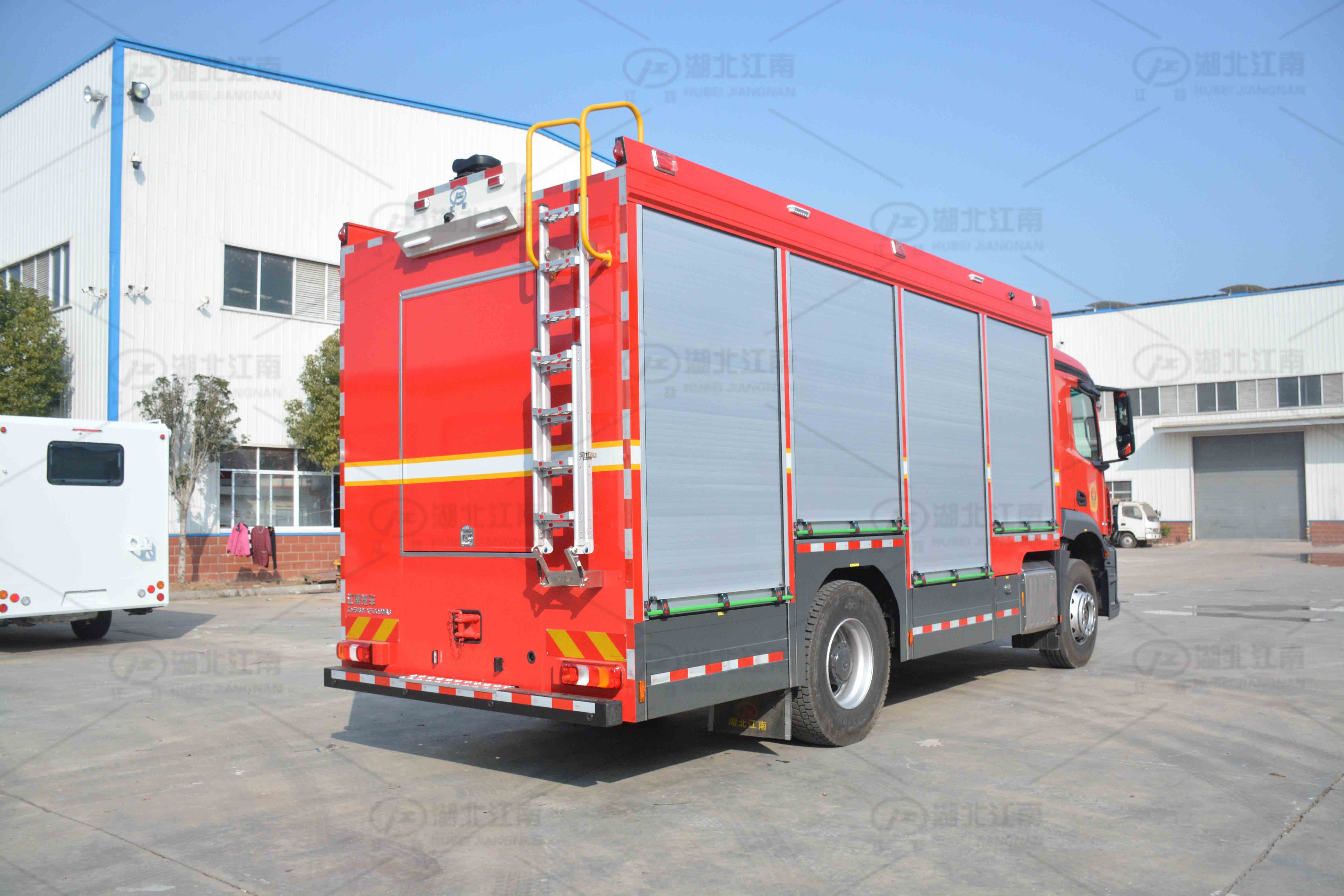

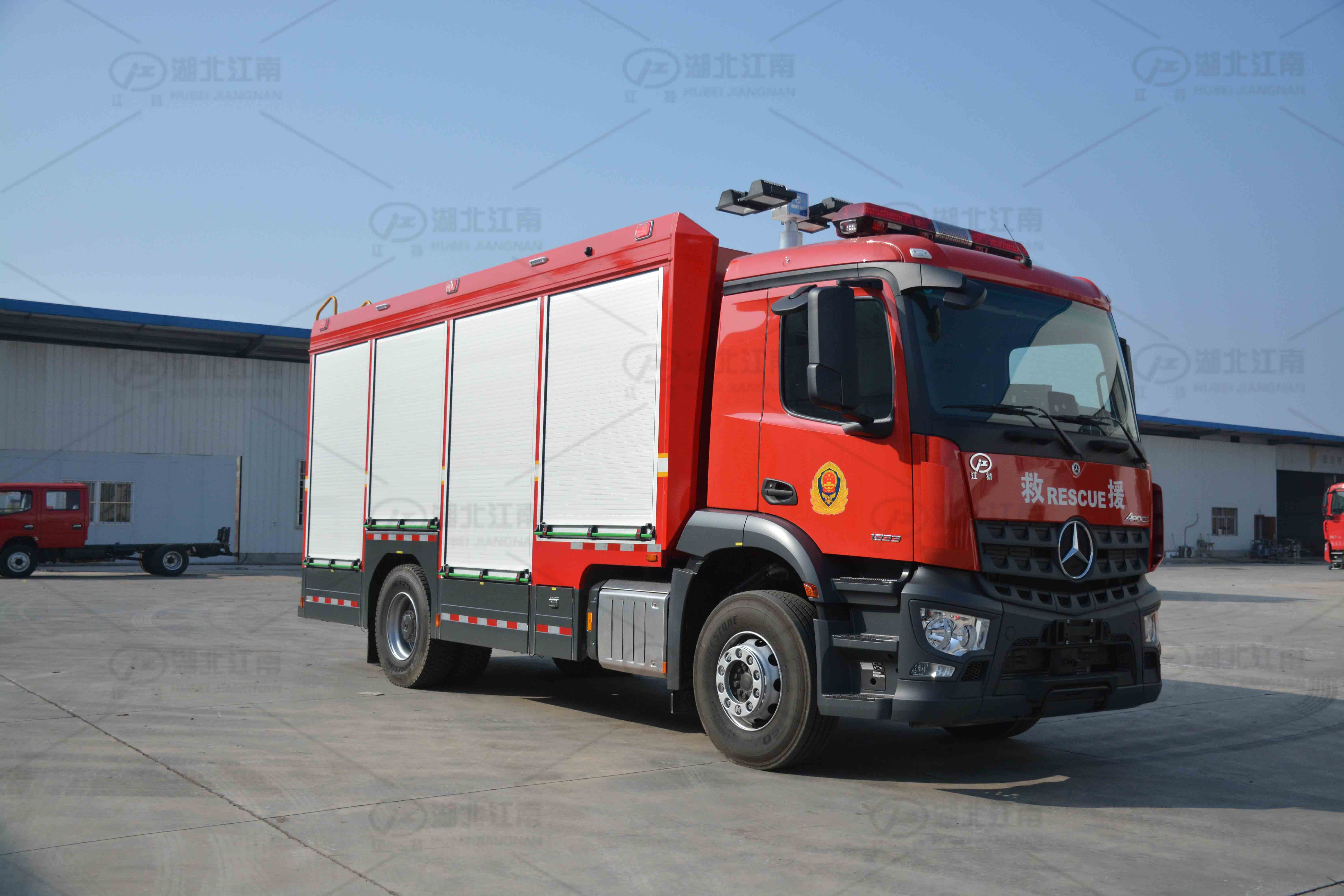

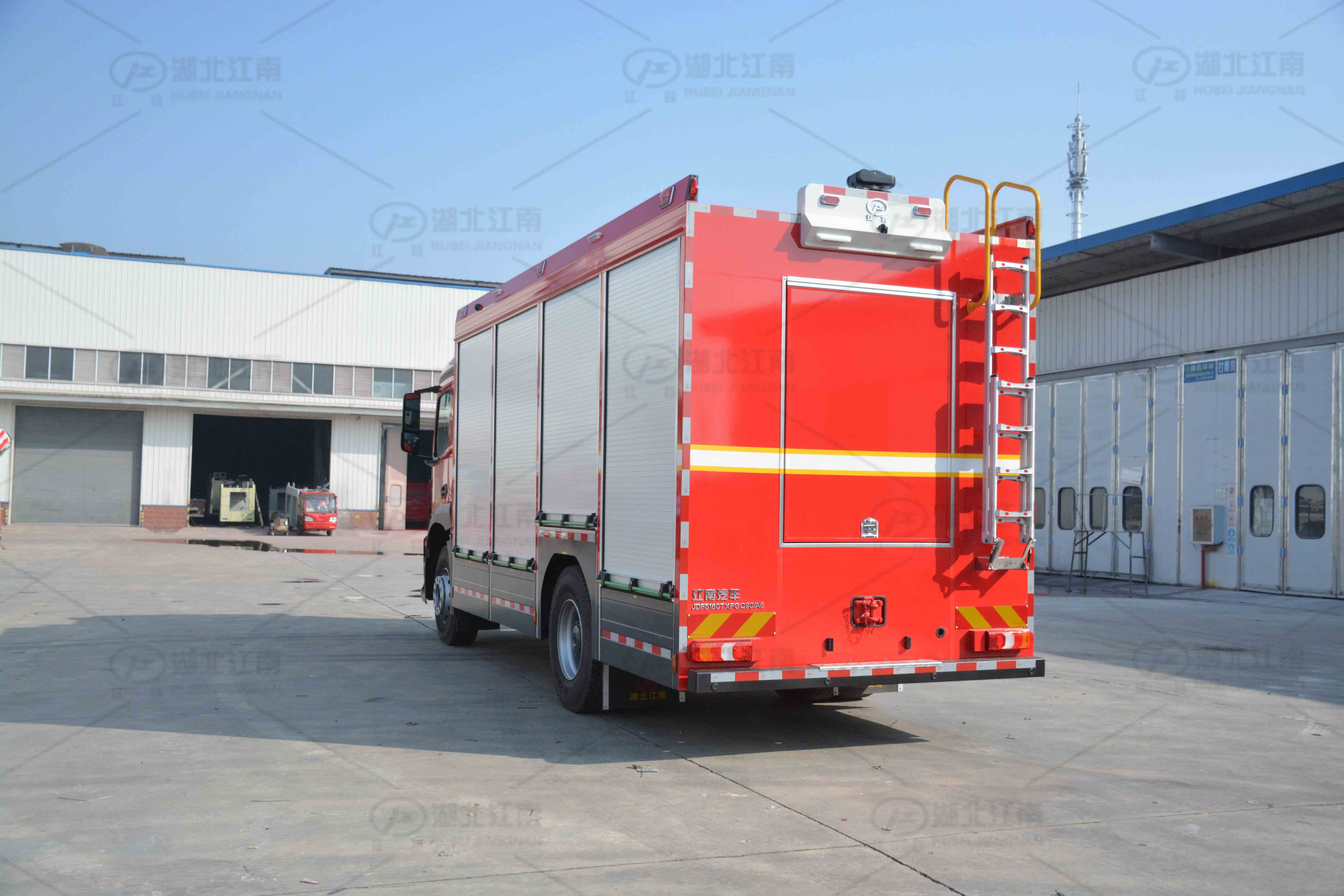

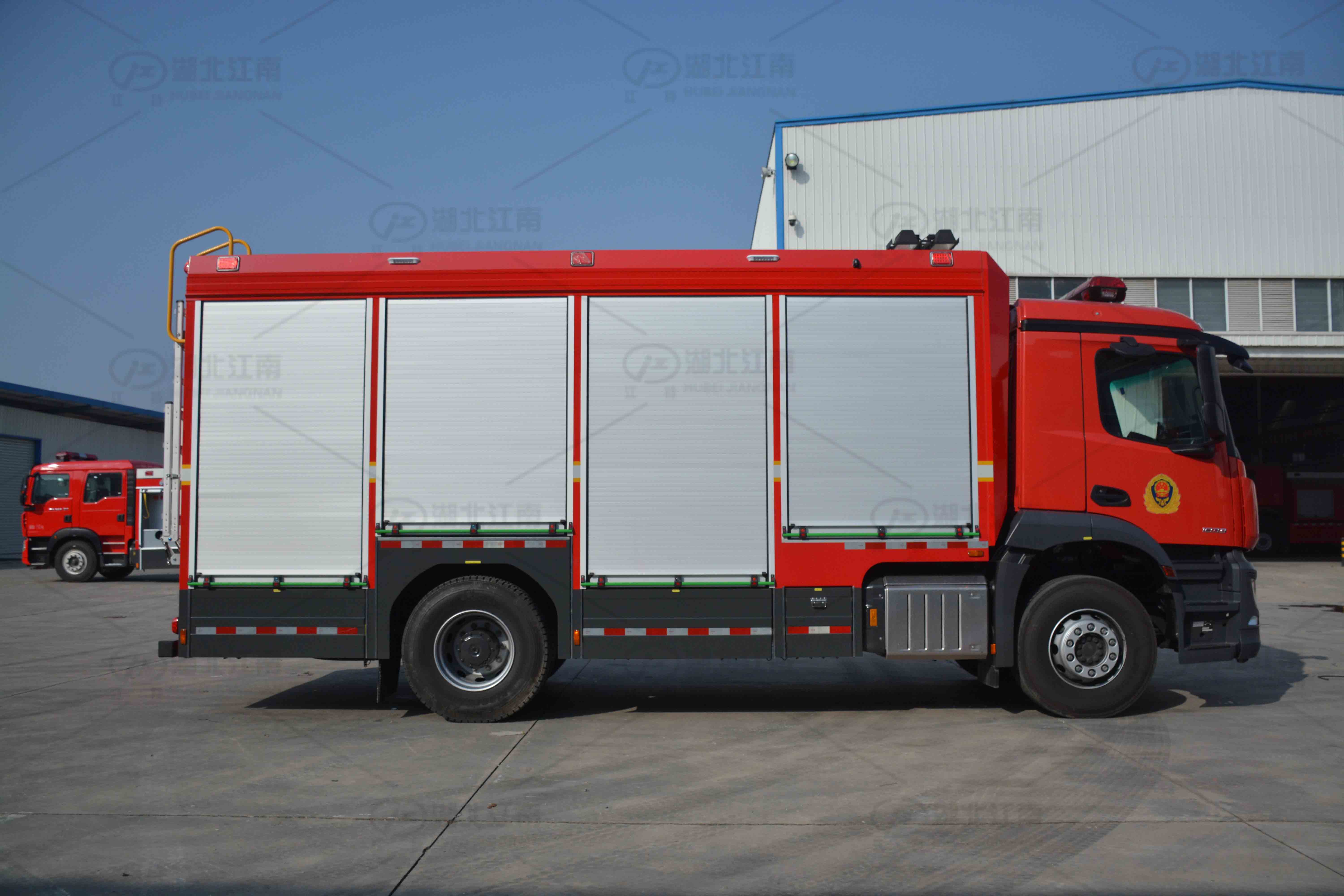

Benz Air‑supply Fire Truck

Jiangte air supply fire trucks provide breathing air replenishment at the incident scene: on-board compressors and cylinder racks refill self-contained breathing apparatus cylinders continuously, supporting long-duration operations in tunnels, underground spaces and confined environments. Filling capacity and equipment configuration follow the MIIT announcement of each model.

Product Highlights

Product Specifications

Product Name	Model JDF5160TXFGQ90/A6 Air‑supply Fire Truck
Overall Dimensions	8380×2510×3900mm
Gross Vehicle Weight	16000kg
Kerb Mass	15850kg
Chassis Model	Arocs 1833E6 4×2 Type‑2 (Daimler)
Wheelbase	4500mm
Tire Specification	315/80R22.5
Engine Model	OM470LA.6‑60
Power	241kW (328 HP)
Displacement	10677mL
Emission Standard	GB17691‑2018 National‑VI
Special Equipment	On‑board breathing‑air filling system
